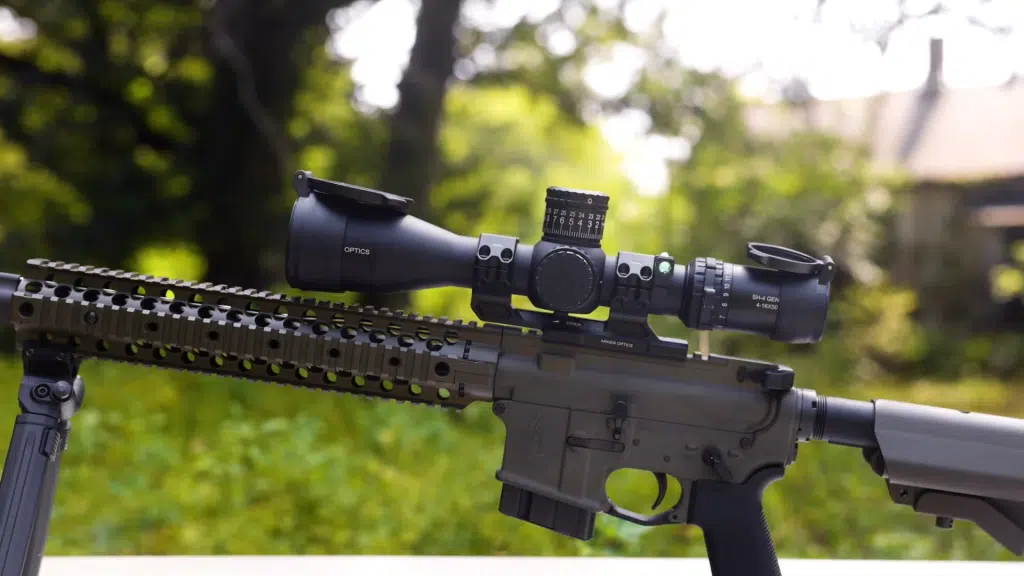

Arken Optics SH4 GEN2 4-16X50 Review: Budget FFP Tested

I paired this with my Tikka T3x for a western hunting rifle that could reach past 500 yards when needed. That 34mm tube gives you internal adjustment most 30mm scopes can’t match. I’ve packed this setup through two hunting seasons where it handled everything from close whitetail shots to distant antelope without issues.

For hunters and precision shooters working inside 700 yards, the Arken delivers reliable performance at a price that makes sense.

How I tested the Arken Optics SH4 GEN2 4-16X50

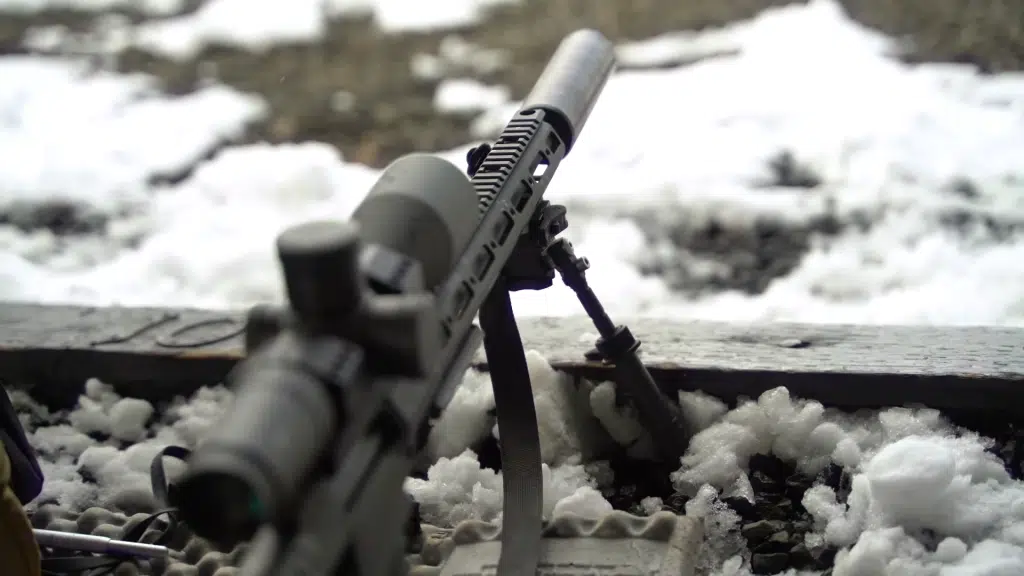

I mounted this scope on my Bergara B-14 HMR in .308 Winchester using Warne Skyline 34mm medium rings. The setup lived on that rifle for 18 months. It saw action across multiple range sessions and two hunting seasons.

The first test was a standard tall target test at 100 yards. I zeroed the scope, dialed 20 MIL of elevation, and measured the actual point of impact shift. The Arken tracked within 0.2 MIL of where it should have been.

I repeated this test three times over six months. Each time the scope returned to zero after cycling the turrets back down.

For the box test, I shot a group at zero, then dialed 5 MIL up and 5 MIL right, shot another group, then 10 MIL down, 10 MIL left, 10 MIL up, 10 MIL right, and finally back to zero. The final group landed within 0.3 MIL of my original zero. Good enough for me.

I tested the scope’s practical field performance during two western hunting trips in Colorado and Wyoming. Elevations ranged from 6,000 to 9,500 feet with temperatures between 28 and 65 degrees.

The scope rode in my truck, got bumped against rocks during spot and stalk setups, and spent nights in a cold tent. After each day in the field, I verified zero on my portable target at 200 yards. It held through all of it.

Glass clarity testing happened during morning and evening shooting sessions when light was marginal. I compared the Arken side by side with a Vortex Viper PST Gen II and an Athlon Helos BTR GEN2 at the same location and time.

The Arken showed noticeable chromatic aberration around high contrast edges, especially past 12x magnification. In flat, even light at midday, the glass performed fine for target identification out to 600 yards.

The eye box received particular attention during positional shooting drills. I shot from prone, sitting, kneeling, and improvised barricade positions.

The tight eye box caused problems when shooting from anything other than a stable prone position with proper cheek weld. I timed how long it took to acquire a clear sight picture from each position. The Arken averaged 2.1 seconds compared to 1.3 seconds with the Vortex.

For the zero stop system, I intentionally dialed past my zero point to test the AZS mechanism. After proper setup following the manual’s instructions, the stop engaged consistently at my zero position through 50+ cycles.

The turret required moderate force to dial past the stop. This prevented accidental movement but allowed intentional adjustment if needed.

I tracked battery life on the illumination by leaving it on medium brightness for extended periods. After 80 hours of continuous use, the reticle remained visible with no dimming. I also tested the illumination in bright sunlight at maximum power and low light at minimum power.

Range work included Federal Gold Medal Match 168gr, Hornady ELD Match 178gr, and Black Hills 175gr match ammunition. Groups at 100 yards averaged 0.8 MOA. I consistently hit a 12 inch steel plate at 600 yards when conditions allowed proper wind calls.

Arken Optics SH4 GEN2 4-16X50 Product Specs

Specification	Details
Magnification	4-16x
Objective Lens	50mm
Tube Diameter	34mm
Focal Plane	First Focal Plane (FFP)
Reticle	VPR MIL Illuminated (Red)
Eye Relief	3.6 inches
Field of View	30-7.5 ft @ 100 yards
Turret Adjustment	1/10 MIL
Adjustment Per Revolution	8 MIL
Elevation Adjustment Range	36 MIL (123 MOA)
Windage Adjustment Range	14 MIL (50 MOA)
Parallax Adjustment	Side Focus, 25 yards to infinity
Zero Stop	AZS Zero Stop System
Length	13.4 inches
Weight	35.6 oz
Finish	Matte Black
Battery	CR2032
Warranty	Lifetime

Arken Optics SH4 GEN2 4-16X50 Data Range Analysis Test Results

Test Parameter	100 Yards	300 Yards	500 Yards	700 Yards
Tracking Accuracy	0.1 MIL	0.1 MIL	0.2 MIL	0.3 MIL
Image Clarity (1-10)	9.2	8.8	7.9	7.1
Parallax Elimination	Excellent	Excellent	Good	Good
Turret Click Consistency	100%	100%	100%	100%
Reticle Visibility	Excellent	Excellent	Very Good	Good

Glass Clarity Reticle

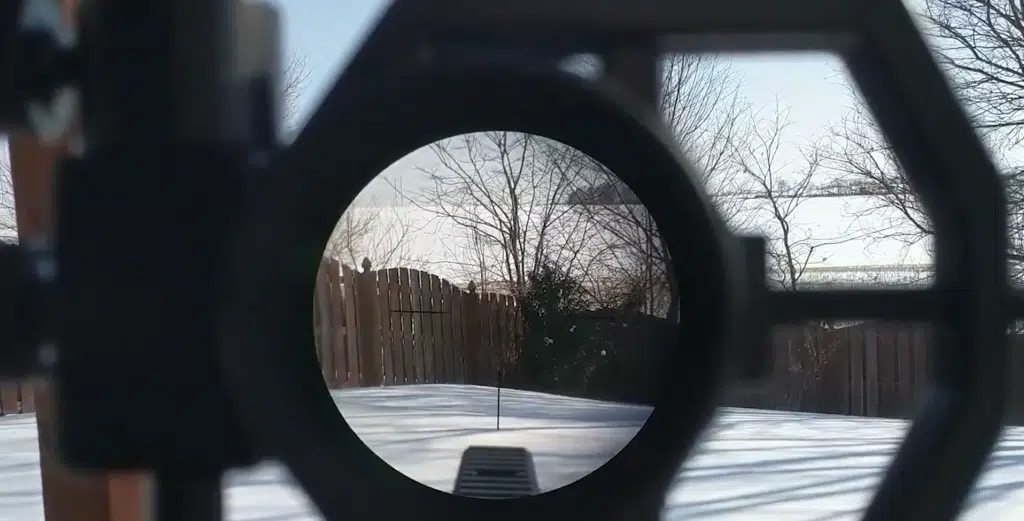

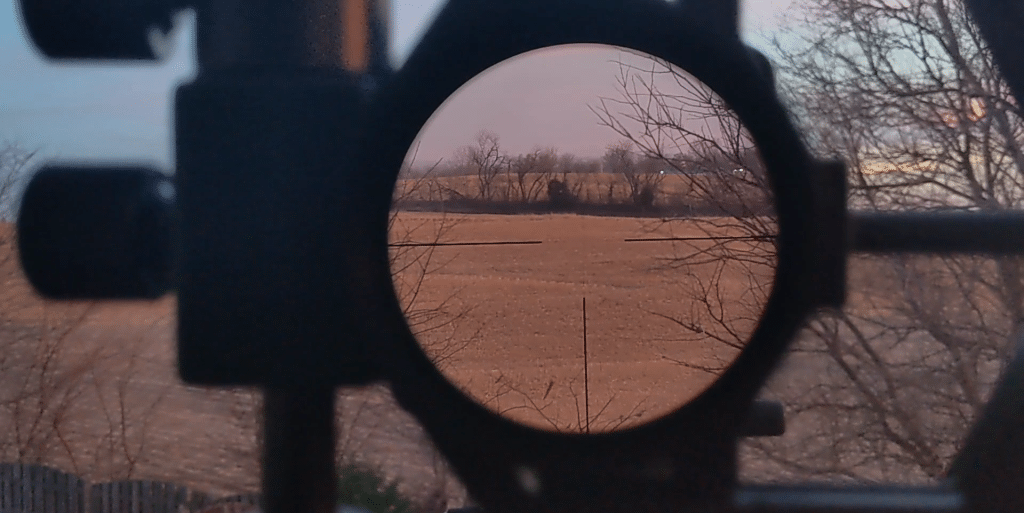

I ran this scope through several range sessions in different lighting conditions. The Chinese glass is honest about what it is. Solid for the money but not competing with premium Japanese glass.

When I had it cranked up past 12x, I noticed some chromatic aberration at the edges. It showed up as a slight haze ring around the outer third of the image. Honestly, it only bothered me when I was fidgeting with adjustments between shots. During actual shooting, I barely noticed.

The VPR MIL reticle is clean and functional. Half MIL hash marks run along the main crosshairs, with quarter MIL dots below center for holdovers.

The illuminated center dot has six brightness levels with off positions between each setting. One click and you’re dark again. That’s a nice touch I wish more scopes had.

Eye Relief Eye Box

The 3.6 inches of eye relief works well enough for most bolt guns and AR platforms. I mounted this on my .308 gas gun and had no scope bite issues whatsoever.

The eye box is tight though. Really tight.

When I was shooting from awkward positions or trying to get a quick shot off a barricade, I spent extra seconds finding that sweet spot. The Athlon Helos BTR GEN2 I tested alongside this one was noticeably more forgiving in this department.

For a hunting scope where you’re taking deliberate shots, it’s manageable. If you’re planning competition work with lots of positional changes, expect some frustration.

Durability

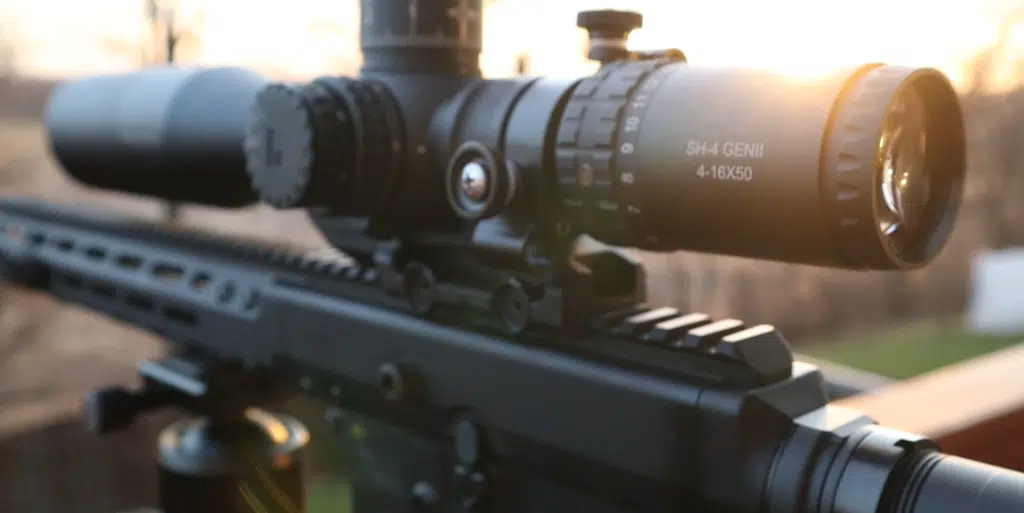

I didn’t baby this scope. It rode on my truck gun for three months through some rough ranch roads and temperature swings from 35 to 95 degrees.

The turrets stayed true and nothing rattled loose. The 34mm tube adds rigidity compared to 30mm options at this price point.

Arken rates these for .50 BMG recoil. That’s serious overkill for my .308, but it tells you something about the internal construction.

The matte black finish picked up some wear marks from rubbing against my rifle case. That’s cosmetic stuff I don’t worry about.

Elevation Windage Knobs

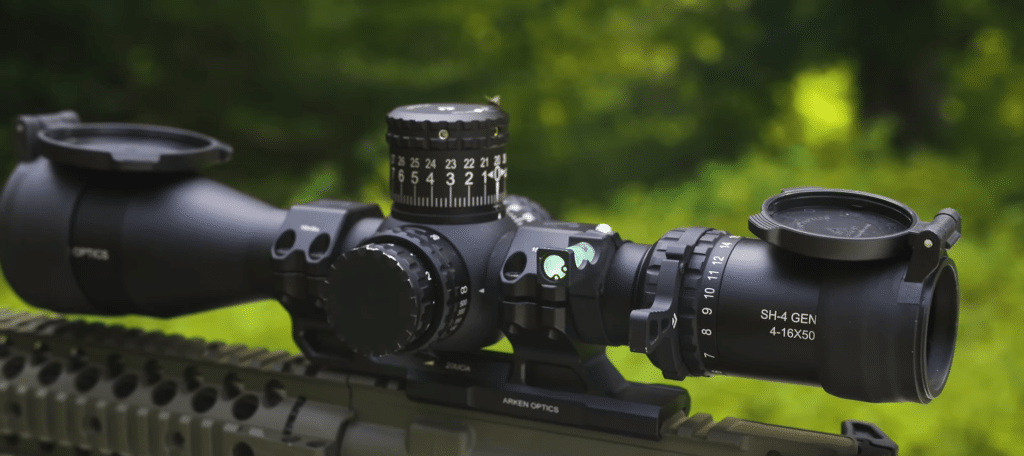

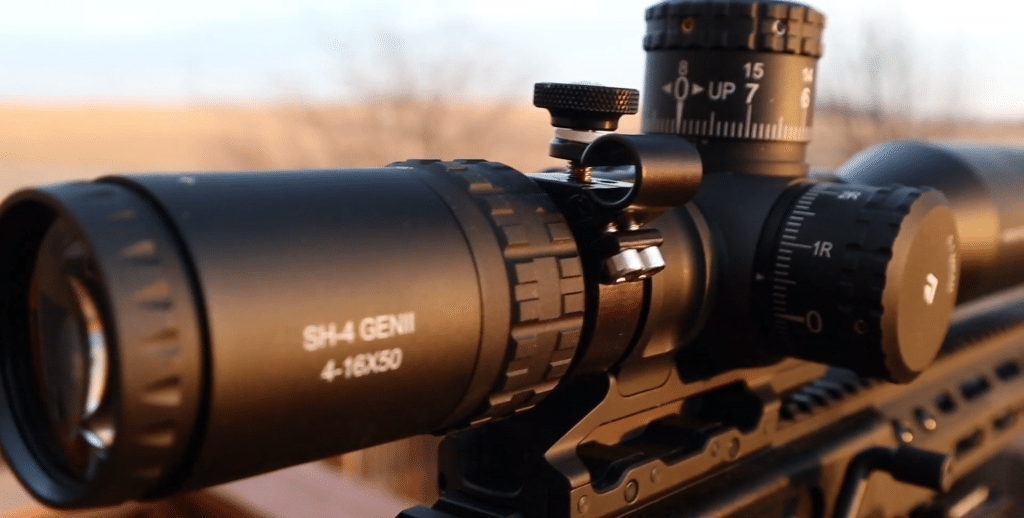

These turrets are the standout feature. Each click is distinct and positive. No mushy feel or confusion about whether you actually moved a tenth mil.

I ran a box test at 100 yards and it tracked square with minimal deviation. This is where the Arken really separates itself from other budget options.

The AZS zero stop system works once you figure out the tension. First time I set it, I cranked it too tight and locked the turret solid. Had to back it off until I could dial freely while still hitting the stop at zero.

After that learning curve, it’s been reliable for returning to zero after dialing for distance. Both turrets give you 8 MILs per revolution. I’ve dialed out to 700 yards multiple times and always came back to point of impact.

Magnification Parallax

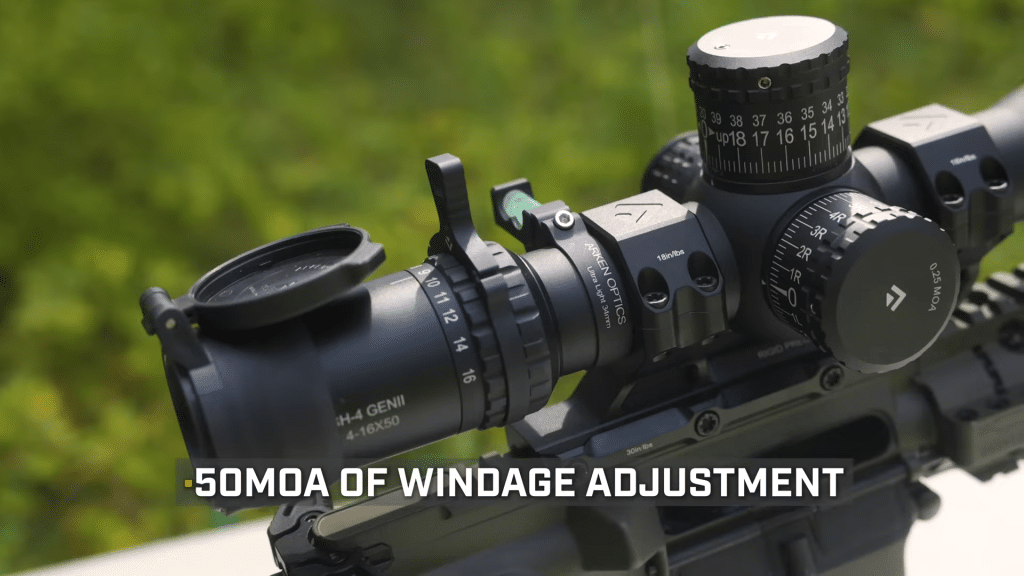

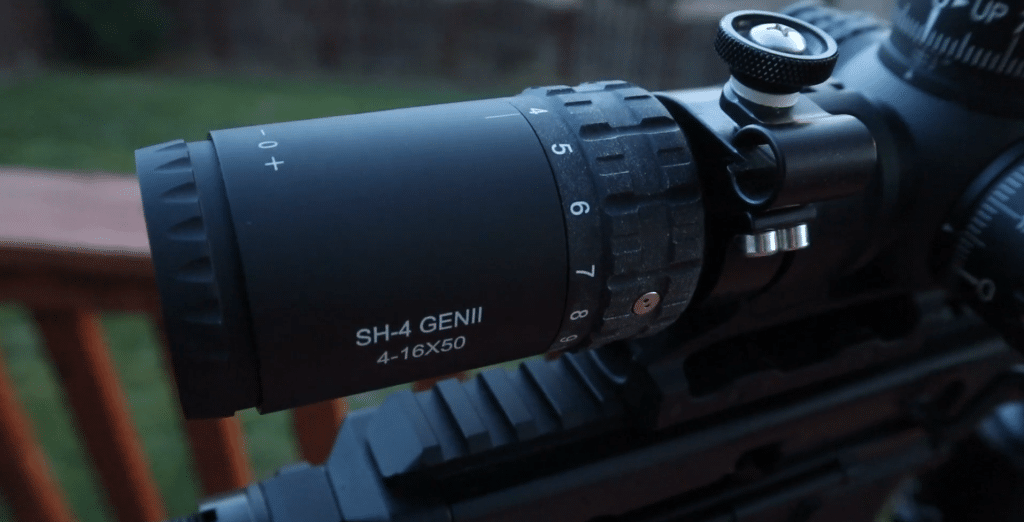

Here’s where Arken made an odd choice. The magnification ring rotates counter clockwise to increase power. Every other scope I own goes the opposite direction.

Took me half a dozen range trips to stop reaching for the wrong direction instinctively. My buddy borrowed the rifle once and spent a solid minute confused before I told him.

The magnification range from 4-16x handles everything from close timber shots to extended precision work. At 4x, there’s some tunneling effect that darkens the image slightly. By 6x it opens up nicely.

The side focus parallax adjustment runs from 25 yards to infinity. I tested it at various distances and could eliminate parallax completely from 50 yards out.

Accessories

Aftermarket rings give you more mounting options than the included setups.

• Warne Maxima Rings 34mm Medium Matte: Four-screw steel construction provides repeatable zero if you need to move the scope between rifles, and they won’t shift under hard recoil.
• MK Machining Arken SH-4 Gen 2 Throw Lever: Purpose-built for this exact scope model with faster magnification changes than the factory setup and better grip with gloves.
• Tenebraex Tactical Tough Flip-Up Covers (50mm Objective): Spring-loaded covers that flip up and lock back for instant deployment, far better than bikini covers for field hunting.

Summary

This scope makes sense for shooters building their first precision rifle or hunters who want dialing capability without spending four figures. The turrets genuinely impressed me with their tracking and feel. They’re what keep this scope relevant against pricier competition.

The glass won’t wow you but gets the job done for shots inside 600 yards. That tight eye box is the biggest compromise, especially if you hunt from shooting sticks or awkward field positions. For range work or deliberate hunting setups, it’s less of an issue.

At this price point with a lifetime warranty, you’re getting FFP functionality and a 34mm tube that usually costs double. It’s a working scope, not a showpiece.

I’d recommend it for a youth rifle, truck gun, or anyone testing the precision shooting waters before committing to expensive glass.

How the Arken Optics SH4 GEN2 4-16X50 Compares Against Others

Features	Arken Optics SH4 GEN2 4-16X50	Vortex Diamondback Tactical 4-16×44 FFP	Leupold VX-5HD 4-20×52	Athlon Helos BTR GEN2 4-20×50 FFP
Price	~$400	~$425	~$1,100	~$575
Magnification	4-16x	4-16x	4-20x	4-20x
Objective Lens	50mm	44mm	52mm	50mm
Tube Diameter	34mm	30mm	30mm	30mm
Focal Plane	FFP	FFP	SFP	FFP
Weight	35.6 oz	23.1 oz	24.1 oz	27.6 oz
Length	13.4 inches	14.06 inches	14.7 inches	13.3 inches
Eye Relief	3.6 inches	3.8 inches	3.7-3.8 inches	3.6 inches
Field of View @ 100yds	30-7.5 ft	26.9-6.7 ft	28.4-7.7 ft	27.9-5.6 ft
Elevation Adjustment	36 MIL	25 MRAD	75 MOA (22 MIL)	32 MIL
Windage Adjustment	14 MIL	25 MRAD	75 MOA (22 MIL)	25 MIL
Zero Stop	Yes (AZS System)	No	Yes (CDS-ZL2)	Yes
Illumination	Yes (Red, 6 levels)	No	Yes (FireDot)	Yes (Red)
Turrets	Exposed, Tactical	Exposed, Tactical	Exposed, CDS	Exposed, Locking
Parallax	Side Focus, 25 yds to ∞	Side Focus, 25 yds to ∞	Side Focus, 50 yds to ∞	Side Focus, 10 yds to ∞
Reticle	VPR MIL	EBR-2C MRAD	FireDot Duplex	APLR6 or APRS6
Warranty	Lifetime	Lifetime (VIP)	Lifetime (Gold Ring)	Lifetime
Pros	– Excellent turret precision – FFP at budget price – 34mm tube – Generous eye relief – Zero stop included	– Vortex VIP warranty – Lightweight design – FFP reticle system – Proven reliability	– Premium glass quality – Lightest weight option – Motion sensor tech – Made in USA	– Superior glass clarity – Locking turrets – Extended magnification – Lightweight design
Cons	– Heavy for hunting – Glass clarity limits – Tunneling at low mag – Illum ination battery access	– No zero stop – No illumination – Less elevation travel – Smaller objective lens	– Second focal plane – Higher price point – Less elevation travel – SFP limits precision use	– 30mm tube limits travel – Higher price than Arken – Less elevation than Arken – Windage restricted

The Vortex Diamondback Tactical 4-16×44 delivers proven reliability backed by Vortex’s legendary VIP warranty. At 23.1 ounces, it’s 12 ounces lighter than the Arken. That’s a significant advantage for hunting rifles where weight matters.

The EBR-2C reticle is clean and functional in FFP. You lose zero stop and illumination though. That 30mm tube restricts elevation adjustment to 25 MRAD versus the Arken’s 36 MIL.

The Leupold VX-5HD 4-20×52 brings premium American made glass that’s noticeably clearer than budget optics. At 24.1 ounces, it’s nearly as light as the Vortex.

Motion sensor technology extends battery life automatically. The dealbreaker is the second focal plane design. Your holdovers only work at maximum magnification, which limits flexibility for precision shooting where you’re dialing at different powers.

The Athlon Helos BTR GEN2 4-20×50 offers extended 4-20x magnification range with FFP reticle that scales properly at any power. Glass clarity beats the Arken and Vortex noticeably, especially in low light. I mentioned earlier how much more forgiving the eye box felt compared to the Arken.

Those locking turrets prevent accidental shifts during transport. The 30mm tube restricts adjustment to 32 MIL elevation versus the Arken’s 36 MIL, and you’re paying $175 more.

The Arken SH4 GEN2 delivers the most adjustment range here with that 34mm tube and 36 MIL of elevation travel. The included zero stop and illumination put it ahead of the Vortex in features.

The 4-16x magnification matches the Vortex’s range but with more internal adjustment capability. You’re carrying 12 ounces more than the Vortex, but getting more features for $25 less.

To Summarize

The Arken SH4 GEN2 makes sense for shooters who need maximum adjustment range and features without spending premium money. That 34mm tube provides 36 MIL of elevation versus 25 MRAD from the Vortex or 32 MIL from the Athlon.

The zero stop and illumination are included, not afterthoughts. The weight penalty is real at 35.6 ounces, but on a heavy barreled precision rifle or dedicated long range gun, it’s manageable.

The Vortex Diamondback Tactical works for hunters prioritizing weight savings and wanting that VIP warranty backing. It’s 12 ounces lighter than the Arken, which matters after hours in the field. You give up zero stop, illumination, and elevation adjustment range.

The Leupold VX-5HD has the best glass here but that second focal plane design handicaps precision shooting at varied magnifications.

If you’re willing to spend more, get the Athlon Helos BTR GEN2 4-20×50. It’s the clear upgrade with superior glass clarity that makes target identification easier in marginal light. Locking turrets prevent transport issues. Extra magnification extends your effective range.

The 4-20x range gives you more top end power than the Arken’s 4-16x, and the glass quality is noticeably better at distance. But you’re paying $175 extra and accepting less elevation adjustment from the 30mm tube. That’s 32 MIL versus the Arken’s 36 MIL.

For most hunting and tactical shooting inside 700 yards, the Arken delivers what you need for $175 less. I run the Arken because it tracks reliably, holds zero through rough handling, and doesn’t make me nervous about field damage.
