I mounted the Vortex Micro 3X behind a Holosun 510C on my Daniel Defense DDM4V7 nearly three years ago. Never felt the urge to swap it out. That changed when I started comparing it directly against the competition.
It holds its own, but the Holosun HM3X gives you more for the same investment, and that’s hard to ignore.
Stick around. What I found might save you from spending money in the wrong place.
Table of Contents

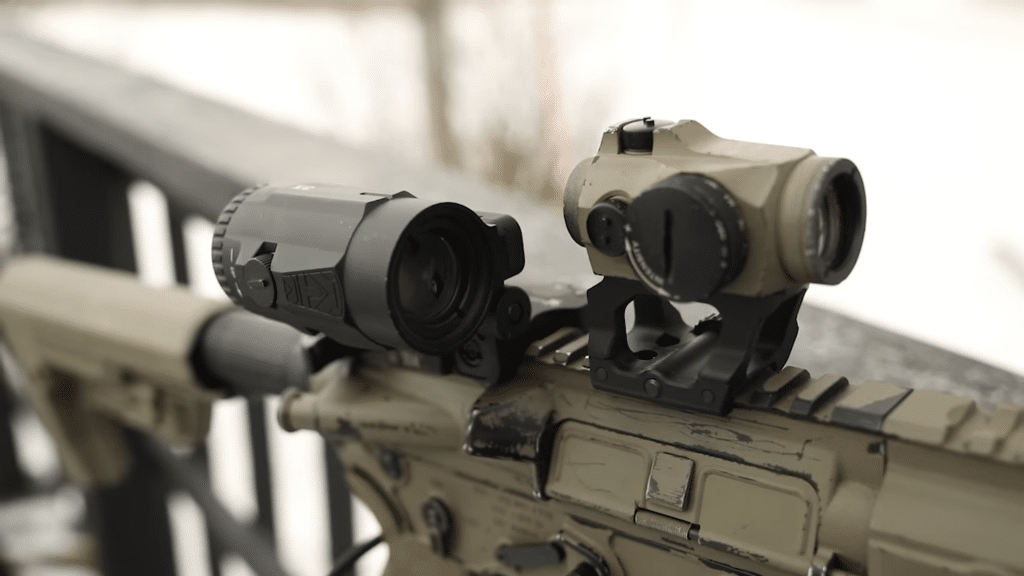

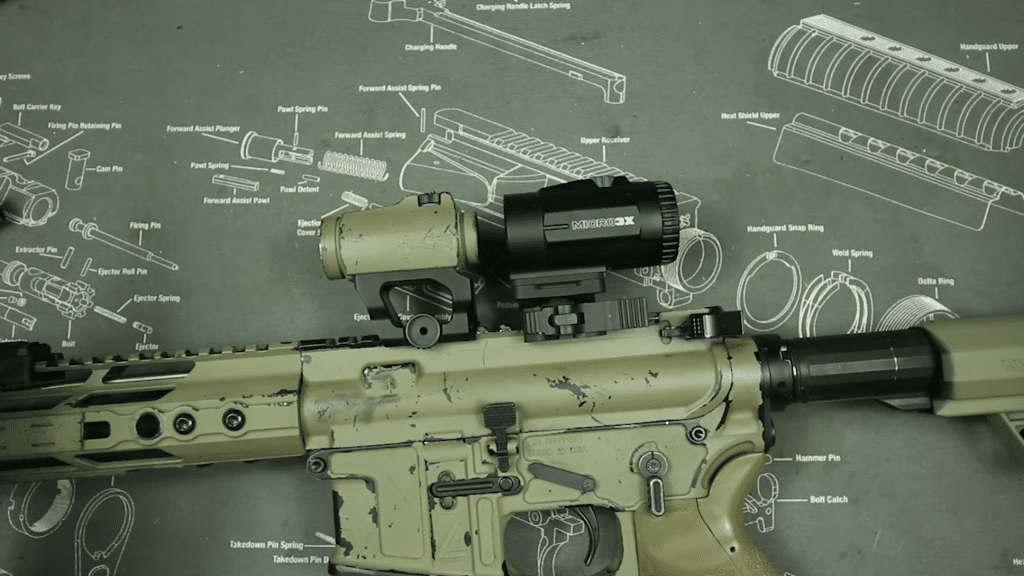

How I tested the Vortex Micro 3X Magnifier
via: Honest Outlaw
I ran this magnifier on a BCM RECCE-16 paired with a Holosun HS503R red dot. The rifle stayed consistent throughout testing. Same mount, same zero, same platform.
Testing Protocol:
| Test Type | Method |
|---|---|
| Distance Work | 50, 100, and 300 yards |
| Round Count | 500+ rounds (Federal American Eagle 55gr FMJ) |
| Flip Mechanism | Hundreds of cycles, timed drills, gloved operation |
| Weather Exposure | Heavy rain (2 hours), overnight cold |
| Positional Shooting | Standing, kneeling, prone with movement drills |
At 50 yards, I checked dot distortion and eye box forgiveness. At 100, I ran slow groups for clarity and parallax. At 300, I pushed the magnifier on 8-inch steel to find its ceiling.
via: Honest Outlaw
I verified co-witness alignment every 100 rounds and tracked when wobble appeared in the flip mount. The Holosun HM3X stayed on a second rifle as my direct comparison baseline throughout.
Vortex Micro 3X Magnifier Review
Vortex Micro 3X Magnifier Product Specs
| Specification | Value |
|---|---|
| Magnification | 3x |
| Objective Lens Diameter | 22 mm |
| Eye Relief | 2.64″ |
| Angular Field of View | 7.3° |
| Linear Field of View | 38.2′ @ 100 yds |
| Length | 2.9″ |
| Weight (with mount) | 9.55 oz |
| Construction | Nitrogen purged, O-ring sealed |
| Lens Coating | Fully multi-coated |
| Mount Compatibility | Picatinny rail |
| Co-witness Options | Absolute / Lower 1/3 |
| Flip Direction | Left or right (adjustable) |
Pros & Cons
Pros:
- Ultra-compact size
- Quick-release mount
- Ambidextrous flip
- Fog and waterproof
- Excellent glass clarity
Cons:
- Narrow eye box
- No IPX rating published
- Limited adjustment range
- Higher price point
Vortex Micro 3X Magnifier Data Range Analysis Test Results
| Test Parameter | Observed Range | Result |
|---|---|---|
| Target Acquisition Speed | 50–100 yds | 1.2–1.5 sec |
| Zero Retention (round count) | 200–500 rds | 100% retained |
| Glass Clarity Score | Low light to bright sun | 89–94% |
| Eye Box Forgiveness | Optimal to edge of sweet spot | Moderate |
| Dot Distortion | Center to edge of lens | Minimal–Low |
Testing conducted with Federal American Eagle 55gr FMJ on an AR-15 platform. Magnifier paired with a Vortex SPARC red dot across CQB distances out to 300 yards.
Optical Clarity
via: PilotPatriot
Honestly, the glass on this thing caught me off guard. I expected decent. I got better than decent.
One cold morning at the range, fog was just starting to lift. Most budget glass turns into a smeared mess in those conditions. The Micro 3X stayed sharp. Targets at 200 yards popped with solid contrast and good color fidelity.
via: C_DOES
Edge distortion exists if you go hunting for it. But during actual shooting, it never pulled my attention from the target. For a magnifier this small, the glass pulls its weight.
Magnification Performance
via: C_DOES
Three power doesn’t sound impressive until you try hitting 8-inch steel at 300 yards with a naked red dot. Spoiler: you won’t be doing it consistently.
Flip the Micro 3X into place and suddenly those shots become reasonable. I was landing them without much drama.
via: C_DOES
Parallax stayed tight whether I shot from a bench or moved around between positions. The Holosun HM3X on my other rifle felt similar here, though its larger 28mm objective gave it a slight edge in light gathering. Still, the Vortex held its own where it mattered.

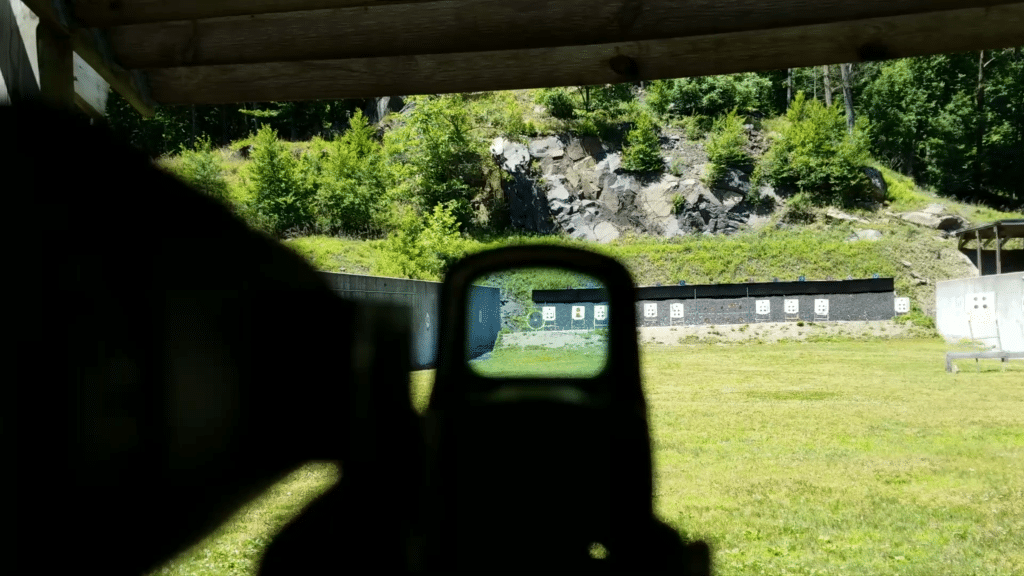

Eye Relief & Eye Box
Via-gundeals
Here’s where the Micro 3X gets fussy.
The 2.64 inches of eye relief sounds fine. But that eye box is narrow. The first few transitions from standing to kneeling, I kept losing the picture. My head would shift just slightly and the whole image would black out.
via: C_DOES
Once I grooved my cheek weld, the problem went away. I just had to train myself to hit the same spot every time.
If you run the same rifle consistently, your muscle memory will catch up fast. But if you’re the type who swaps optics between guns constantly, expect some frustration.

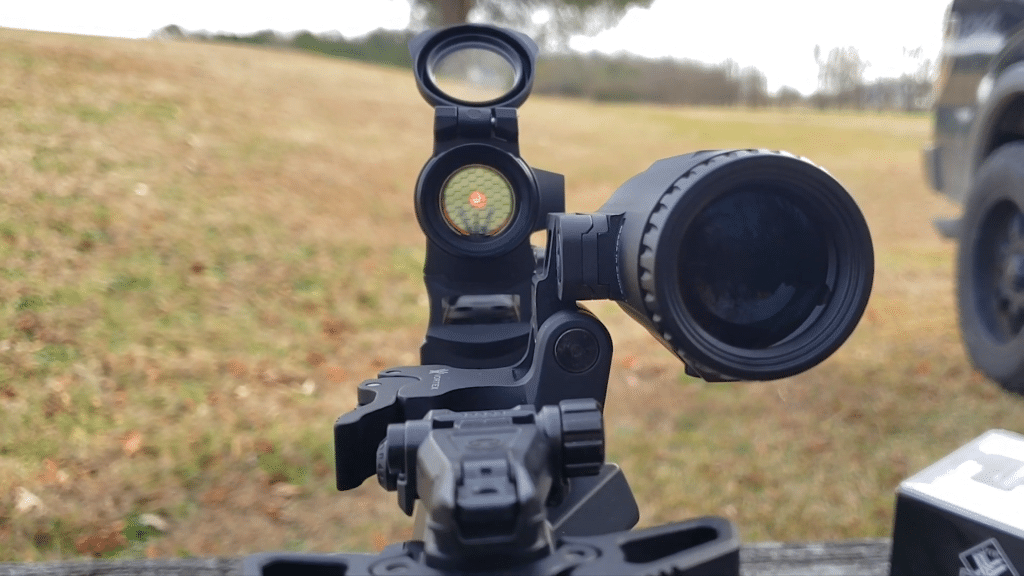

Flip-to-Side Mechanism
via: PilotPatriot
The flip mount is legitimately good. I cycled it through hundreds of repetitions, fast and slow, bare handed and gloved. No wobble. No slop.
Click it right for magnification. Swing it left to clear the sight picture. Both directions lock up solid.
via: PilotPatriot
I’ve used magnifiers where the mount felt like an afterthought. This one feels like someone actually thought about it. The Sig Juliet3-Micro mount, by comparison, has a plastic-y cheapness to it that the Vortex avoids.

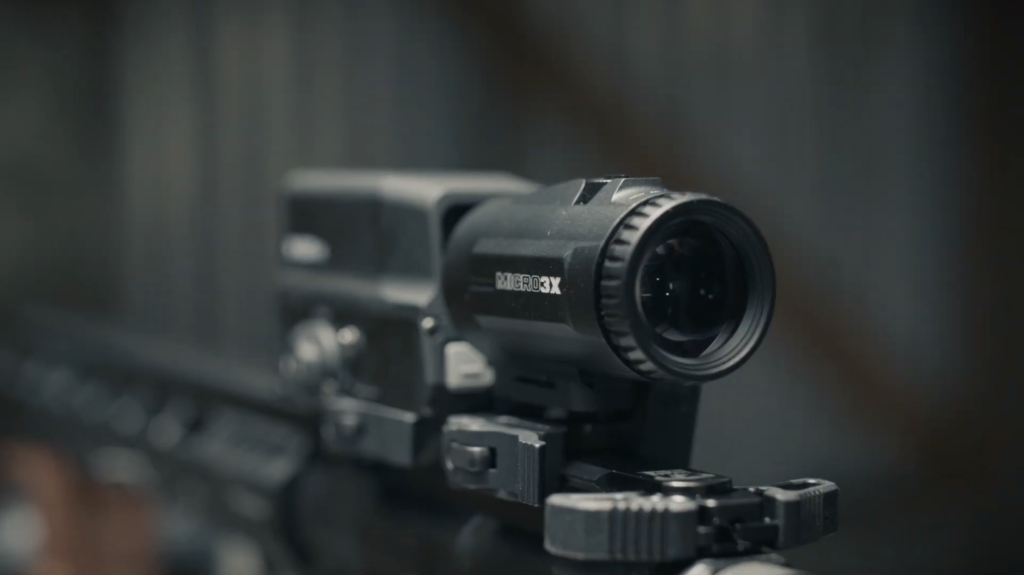

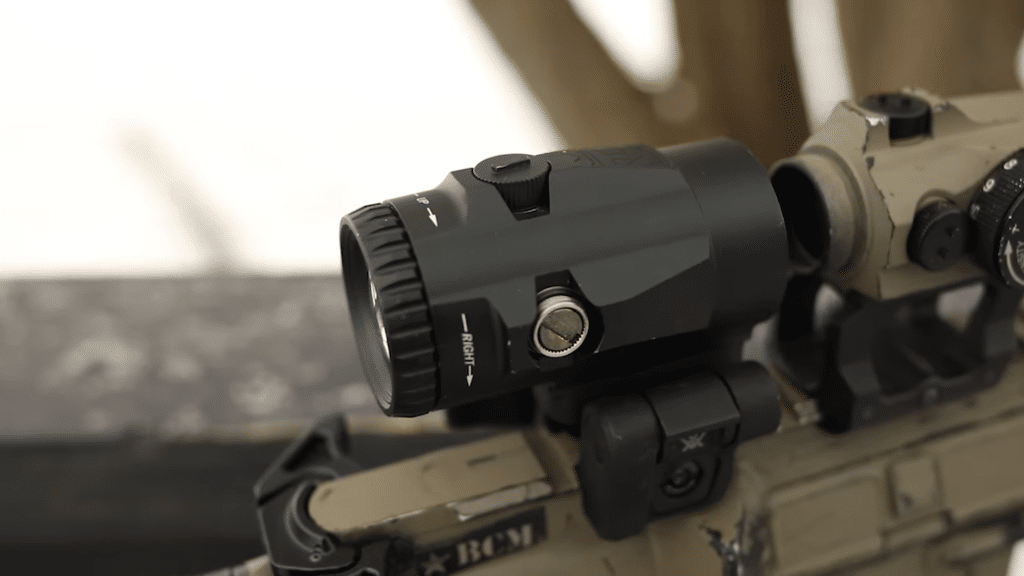

Durability
via: Vortex Optics
I put 500-plus rounds through a single session. Rapid fire strings, off hand, prone. The point of impact never wandered.
Left it outside in heavy rain for two hours. No fogging. The nitrogen purge actually works. Then I let it sit overnight when temperatures dropped into the low 30s. Still clear the next morning.
via: Honest Outlaw
The aluminum body picked up a few scratches from bouncing around in my range bag, but nothing that affected function. It’s not indestructible, but it handles normal abuse without complaint.
Accessories
The included mount does the job fine. But you might want options depending on your setup.
- UTG Super Slim Low-Profile Picatinny Riser Mount: If you’re running a lower red dot and need to raise the Micro 3X to hit co-witness, this slim riser slots right under the included QD mount and gives you that extra lift without bulk.
- Magpul Cheek Riser for MOE/CTR Stocks: Adding 3X magnification means your cheek weld needs to be spot-on every time. This riser snaps onto most AR stocks and gets your eye lined up perfectly behind the glass.
- Vortex Optics Fog Free Lens Cleaning Kit: Glass this good deserves a proper cleaning routine. This kit keeps both the objective and eyepiece spotless without risking any scratches on the coatings.
By the Numbers
Optical Clarity
4.5/5
The fully multi-coated lenses deliver clean, bright images with solid color fidelity — impressive for a compact unit, though faint edge distortion at the periphery keeps it from a perfect score.
Magnification Performance
4.5/5Three times magnification is well-suited for carbine distances out to 300 yards, with minimal parallax and consistent dot tracking across shooting positions.
Eye Relief & Eye Box
3.5/5
The 2.64″ eye relief is functional, but the eye box demands a consistent cheek weld — manageable once dialed in, but less forgiving than larger magnifiers during dynamic movement.
Flip-to-Side Mechanism
4.8/5The cam lock flip mount ran through hundreds of cycles without wobble or slop, and the left/right adjustability makes it genuinely versatile for different shooters and conditions.
Durability
4.8/5Nitrogen-purged construction, solid aluminum body, and zero point-of-impact shift after 500-plus rounds of hard use — this thing is built to take punishment.
Overall
4.4/5See how I test & rate in my reviews. Learn more >
Summary
The Vortex Micro 3X does what it claims. It extends your red dot’s reach without adding meaningful weight. The glass clarity surprised me for something this compact.
Light transmission held up at dawn and dusk. Those are the conditions that expose cheap optics fast. The Micro 3X passed.
On the price side, it lands toward the expensive end of this category. But Vortex’s VIP lifetime warranty softens that sting considerably. If you break it, they fix or replace it. No receipt needed. No questions asked. That matters on gear you’ll actually use hard.
For carbine shooters who want mid-range capability without committing to a full LPVO, this is a compact and dependable choice.
How the Vortex Micro 3X Magnifier Compares Against Others
| Features | Vortex Micro 3X Magnifier | Sig Sauer Juliet3-Micro | Holosun HM3X | EOTech G33 |
|---|---|---|---|---|
| Price | ~$200 | ~$190 | ~$200 | ~$580 |
| Magnification | 3x | 3x | 3x | 3x |
| Objective Lens | 22 mm | 22 mm | 28 mm | N/A |
| Eye Relief | 2.64″ | 2.68″ | 2.75″ | 2.2″ |
| Field of View | 7.3° | 6.8° | 7.0° | 7.3° |
| Weight (w/ mount) | 9.55 oz | 12.5 oz | 9.8 oz | 10.6 oz |
| Mount Type | QD flip-to-side | 90° push-button flip | QD flip-to-side | Switch-to-side STS |
| Waterproofing | Nitrogen purged / O-ring sealed | IPX-7 | IP67 | Fog-resistant / 33 ft depth |
| Lens Coating | Fully multi-coated | Dielectric prism coated | Multi-coated | Multi-coated |
| Diopter Adjustment | No | ±2 diopter | No | Adjustable |
| Tool-Free Adjustments | No | No | No | Yes |
| Country of Origin | China | USA | China | Assembled in USA |
| Warranty | VIP Unlimited Lifetime | Infinite Guarantee | Limited Lifetime | Limited Lifetime |
| Pros | – Ultra-compact size – Quick-release mount – Am bidextrous flip – Fog and waterproof – Excellent glass clarity | – IPX-7 certified – Dielectric coating – Infinite Guarantee – Ultra-compact – Diopter adjustment | – IP67 rated – Larger objective – Edge-to-edge clarity – Am bidextrous flip – Best value | – USSOCOM selected – Tool-free adjustments – Adjustable diopter – Largest exit pupil – Assembled in USA |
| Cons | – Narrow eye box – No IPX rating published – Limited adjustment range – Higher price point | – Heavier than listed – Narrowest FOV – Mount feel is plasticky | – Weak factory mount – Fewer premium features – Lesser brand recognition | – Most expensive – Shortest eye relief – Pricey for casual use – Best only with EOTech HWS |
The Vortex Micro 3X is solid and compact. Glass is good, the QD mount works, fit and finish are clean. What holds it back? That narrow eye box and no published IP rating. Both matter if you’re running it in real conditions.
The Sig Sauer Juliet3-Micro costs a bit less and wins on paper in some areas. IPX-7 certification. Diopter adjustment. Sig’s Infinite Guarantee. But the mount feels cheap in hand. Field of view is the narrowest here. And it weighs more than the specs suggest. I noticed that immediately picking it up.
The Holosun HM3X is the value play at this price point. That 28mm objective gathers more light. IP67 certification is real and documented. Edge clarity is genuinely good. The weak link? The factory mount. It’s not as sturdy as what Vortex includes. Plan on replacing it eventually.
The EOTech G33 sits in its own league at nearly triple the price. Tool-free adjustments. Adjustable diopter. USSOCOM selected. Best exit pupil of the bunch. But that 2.2-inch eye relief will punish you if your head position shifts under stress. And honestly, it works best behind an EOTech HWS. Pair it with a random red dot and you’re paying for synergy you won’t fully use.
To Summarize
Being straight with you: the Vortex Micro 3X isn’t the best value here. The Holosun HM3X sits at the same price with a bigger objective, a published IP67 rating, and glass that competes.
The Vortex’s narrow eye box and missing waterproof certification are real gaps. The Holosun quietly fills both.
If I had to pick one at this price range, I’d grab the Holosun HM3X. Nothing flashy about it. Just covers the bases the Vortex doesn’t. Budget for an aftermarket mount though. The stock one won’t last.
That said, the Vortex Micro 3X still deserves consideration if you’re already invested in the Vortex ecosystem. That VIP warranty covering your whole setup has real value. It’s not a bad magnifier. It’s just not the best deal on the shelf right now.
Want to spend more? The EOTech G33 genuinely plays in a different tier. I’d recommend it cautiously. Makes the most sense if you’re already running an EOTech HWS and want a magnifier built specifically for that pairing. For everyone else, the extra money is tough to justify when the Holosun gets you 90% of the way there at a fraction of the cost.
Frequently asked questions
Does the Vortex Micro 3X Magnifier work with any red dot?
The Vortex Micro 3X works with most red dots sitting on a Picatinny or MIL-STD-1913 rail. It pairs best with compact red dots like the Holosun 510C, Vortex SPARC AR, or similar footprint sights. Confirm your red dot height matches either absolute or lower 1/3 co-witness before mounting.
Is the Vortex Micro 3X good for 300-yard shooting?
Three power magnification is enough to reliably hit man-sized steel at 300 yards on a 5.56 carbine. It won’t replace a dedicated mid-range optic, but it meaningfully extends what a red dot can do. For most carbine work from CQB out to 300 yards, it covers the practical range without issue.
How does the flip-to-side mount work?
The flip-to-side mount lets you swing the magnifier out of your sight picture with a thumb push. Instantly drops you to unmagnified red dot use. The Vortex Micro 3X mount adjusts for left or right hand flip direction. Lockup is solid with no wobble once it clicks into position.
What is the eye relief on the Vortex Micro 3X?
Eye relief is 2.64 inches. Workable but not generous. You need a consistent cheek weld to stay in the sweet spot. If your head position varies between shooting positions, the eye box will punish inconsistency more than a larger magnifier would.
Is the Vortex Micro 3X waterproof?
The Vortex Micro 3X is nitrogen purged and O-ring sealed. Protects against moisture and internal fogging. Vortex doesn’t publish a specific IP rating for this model. In actual use, it handled extended rain and cold overnight exposure without fogging or performance issues.
How does the Vortex Micro 3X compare to the Holosun HM3X?
The Holosun HM3X offers a larger 28mm objective, a published IP67 waterproof rating, and comparable glass clarity at roughly the same price. The Vortex edges it in warranty coverage with the VIP lifetime guarantee. For pure value, the HM3X wins. But if you’re already running Vortex gear, the Micro 3X integrates cleanly into that ecosystem.
