My Vortex Impact 4000 has ridden on a Seekins Precision Havak HIT Pro in 6.5 Creedmoor for three full hunting seasons across western country. Hundreds of rounds, plenty of frozen mornings, and a few drops I’d rather not talk about.
This review has been three long seasons in the making.
The Vortex Impact 4000 is worth the investment for anyone who needs rail-mounted ballistic solutions from the shooting position.
Here’s what you need to know.
Table of Contents
How I tested the Vortex Impact 4000
Testing a rail-mounted unit means asking different questions than I would with a handheld. The point isn’t only ranging accuracy. It’s whether the thing actually changes how I shoot from the gun.
Via-Vortex Optics
Here’s the workflow I ran across three seasons:
Rifle setup
The unit lived on a Seekins Havak HIT Pro in 6.5 Creedmoor (Federal 140gr match) and also got hammered on a .300 Win Mag for recoil and zero retention testing.
Ranging accuracy
Known distances from 100 to 1,400 yards against steel plates and deer silhouettes. Every reading got cross-checked with a handheld rangefinder, with at least five reads logged per distance.
Ballistic solver verification
GeoBallistics rifle profiles were built for both cartridges before the unit hit the rail. At each test distance, I dialed the displayed correction and fired three-shot groups to confirm impact matched prediction.
Environmental sensors
Compass, temperature, pressure, and humidity readings were compared in real time against a Kestrel 5700 Elite during hunts in Wyoming and Montana. Days with big pressure swings got extra attention.
Recoil and zero
About 150 rounds through the .300, with zero confirmation every 25-round block plus a mount inspection after each session.
Cold weather
Display response and ranging speed tracked down to 20°F.
Night vision integration
Ranged 200 to 600 yards through a Pulsar Krypton 2 FXG50 clip-on and compared the ballistic outputs against daytime solutions at matching distances.
Compass calibration
Tested the 30-mile recalibration threshold by blowing past it on purpose, then compared solutions before and after recal.

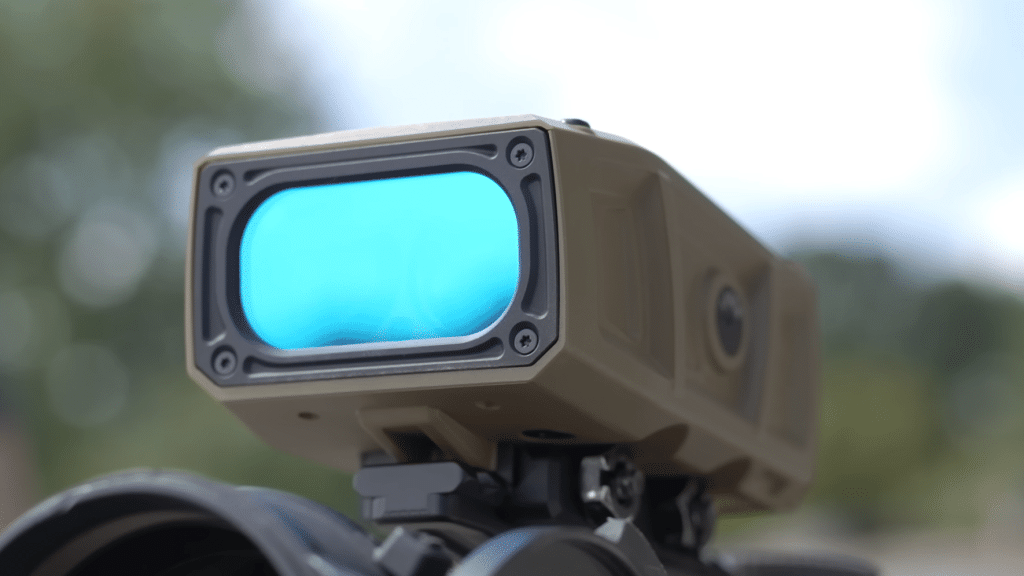

Vortex Impact 4000 Review

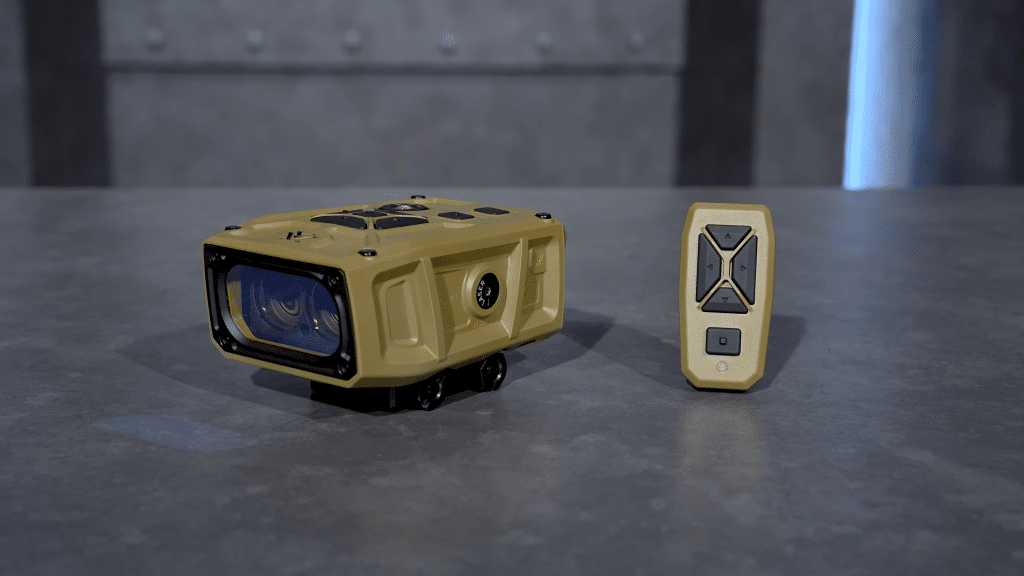

Vortex Impact 4000 Product Specs
| Spec | Details |
|---|---|
| Model | Vortex Impact 4000 (LRF-IMP4000) |
| Type | Ballistic Rail-Mounted Laser Rangefinder |
| Max Reflective Range | 4,000 yds |
| Deer Range | Up to 1,500 yds |
| Ranging Accuracy | ±0.5 yds |
| Magnification | 7x |
| Ballistic Solver | GeoBallistics® (integrated) |
| Ballistic Profiles | 10 preloaded, customizable profiles |
| Environmental Sensors | Compass, temperature, barometric pressure, humidity |
| Weather Protection | Waterproof, fogproof, shockproof |
Pros & Cons
Pros:
- Integrated ballistic solver
- Rail-mounted design
- Onboard environmental sensors
- Kestrel compatibility
- Holds zero under recoil
Cons:
- Steep price point
- Complex initial setup
- Cold-weather display lag
- Frequent compass recalibration
- Steep learning curve
Vortex Impact 4000 Data Range Analysis Test Results
| Testing Parameter | Condition | Result |
|---|---|---|
| Max Range – Reflective Target | Clear daylight, open terrain | Confirmed at 4,000 yds |
| Deer-Sized Target Range | Good light, open sightlines | Consistent to 1,500 yds |
| Low-Light Range Performance | Dawn / dusk conditions | Reliable to ~1,400 yds |
| Cold Weather Display Response | Overnight cold soak (~20°F) | Noticeable display slowdown; accuracy maintained |
| Recoil Zero Retention | 300+ rounds, .300 Win Mag | Zero held; no mechanical failure observed |
Testing conducted with .300 Win Mag using Federal 215gr Trophy Bonded factory loads and 6.5 Creedmoor 140gr match ammo. All sessions run in open western terrain at elevations between 4,500–7,200 ft.
Ranging Performance
The first morning I had it on a hunt, I ranged a buck at 843 yards on my first trigger pull. Wyoming sage country, gray light, and I never broke position or grabbed a handheld.
Via-Vortex Optics
For open-country hunters, that one moment sells the whole concept.
Via-Kit Badger
I pushed it to 1,400 yards on deer-sized targets in decent light and got readings I trusted. Past 1,500 on smaller targets, results got patchy. Honestly though, that’s any rangefinder at those distances.
Ballistic Solutions
The GeoBallistics solver is what separates this from a regular rangefinder. I built my 6.5 Creedmoor profile through the app on my couch one night, sent it to the unit, and never touched it again.
Via-Kit Badger
On a 700-yard shot at a steel plate, I dialed exactly what the display told me and connected first round. Felt almost like cheating.
For competitors and hunters who can’t afford a guessing game, that kind of real-time wind and drop solution is hard to put a price on.
Environmental Sensors
The onboard compass, temperature, humidity, and barometric pressure sensors feed the solver automatically. Hunting at elevation, where conditions shift fast, that matters more than most folks realize.
Via-Precision Rifle Network
One thing caught me off guard. If you travel more than 30 miles from your original calibration point, the compass needs a fresh recalibration.
Via-Precision Rifle Network
I figured that out the hard way driving between hunting units in Montana, getting weird drop numbers until I sat down and recalibrated in the truck. Once you know the rule, it’s an easy habit.
Display & Interface
The 1.3-inch LCD reads fine in most conditions. Dawn light, shade, mid-afternoon sun, no complaints.
Via-Area 419
Where it falls apart is real cold. Below 20°F, the display refresh slows down enough to notice. Numbers are still accurate, just slower to show up on screen.
Via-Area 419
The button layout makes sense once you’ve worked through it a few times. Getting there takes patience. Spend an evening on the couch with the manual before your first hunt or you’ll be cussing in the field.
Durability
I knocked this thing off my truck tailgate from about four feet onto rock. Picked it up, kept hunting, never had an issue. The rubber armor earns its keep.
Via-Area 419
I also ran it mounted on a .300 Win Mag through hundreds of rounds across two seasons. Zero never shifted, not once. For anyone running heavy-recoiling cartridges, that retention isn’t a nice-to-have, it’s the entire point of buying one of these.
Via-Vortex Optics
Accessories
The included SureFit cover does the job, but a few additions make the Impact 4000 faster and more versatile in the field. The aftermarket options below are worth the extra spend.
- Kestrel 5700 Elite with Applied Ballistics: Pairs with the Impact 4000 via the GeoBallistics app to feed real-time wind and atmospheric data into your ballistic solution. If you’re already running a Kestrel in your kit, this integration is a natural extension.
- Vortex Precision Matched Diving Board Mount: This is the mount built specifically for the Impact 4000. It sits at the ideal height over your front ring and clears the objective bell without adding bulk.
- MK Machining Vortex Impact 4000 Cap with Integrated ARD: Flip-up cap precision-fit to the Impact 4000’s objective lens. Keeps the glass clean in the field, and the honeycomb ARD kills glare without meaningfully affecting ranging performance.
By the Numbers
Ranging Performance
5/5
Consistently ranged deer-sized targets out to 1,500 yards and delivered reliable readings across varied open-country terrain without needing a second attempt.
Ballistic Solutions
4/5
The GeoBallistics solver is accurate and dependable in the field, though the initial app setup and profile configuration demand time and patience before it runs smoothly.
Environmental Sensors
4/5Onboard sensors deliver real-time environmental data that meaningfully improves long-range accuracy, but the compass recalibration requirement when traveling between locations is an inconvenience that adds up.
Display & Interface
3/5Readable and functional in most conditions, but cold-weather display lag and a steep menu learning curve prevent it from earning top marks in this category.
Durability
5/5Survived hard drops, extended rain exposure, heavy dust, and hundreds of rounds of .300 Win Mag recoil across multiple seasons without losing zero or developing any mechanical issues.
Overall
4.2/5See how I test & rate in my reviews. Learn more >
Summary
The Impact 4000 is built for long-range hunters and precision shooters who want less gear hanging off them without giving anything up on performance. It isn’t cheap. What that money buys is one device that ranges, calculates, and adjusts while you stay in the gun.
In the field, that workflow is a real thing. It saved my shot opportunities more than once.
Setup is the part people underestimate. The five-axis compass calibration, the app configuration, the profile building. Plan on a dedicated evening or two before it all clicks.
Skip that prep and head out unprepared and you’ll be miserable. Do it right and the system pays you back every single time you range.
Vortex covers it with their VIP warranty, which is about as good as it gets in this industry. No-fault, transferable, no headaches.
For competitors and serious hunters who regularly shoot past 500 yards, the Impact 4000 is a legitimate upgrade that simplifies what used to take three separate pieces of gear. If most of your shooting stays inside 300 yards, the math gets a lot harder to justify. Know your game before you buy.
How the Vortex Impact 4000 Compares Against Others
| Features | Vortex Impact 4000 | Sig Sauer KILO8K-ABS | Leica Rangemaster CRF 3500.COM | Sig Sauer KILO10K-ABS HD Gen II |
|---|---|---|---|---|
| Price | ~$1,595 | ~$1,499 | ~$1,199 | ~$2,699 |
| Type | Rail-Mounted Ballistic LRF | Handheld Monocular | Handheld Monocular | Rangefinding Binoculars |
| Max Reflective Range | 4,000 yds | 8,000 yds | 3,500 yds | 10,000 yds |
| Deer Range | 1,500 yds | 2,000 yds | Not specified | 3,000 yds |
| Magnification | 7x | 7x | 7x | 10x |
| Ballistic Solver | GeoBallistics® (10 profiles) | Applied Ballistics Elite (25 profiles) | App-dependent via Leica Hunting App | Applied Ballistics Elite (25 profiles, 8 groups) |
| Display | 1.3″ LCD | Active Matrix OLED | Red LED | Active Matrix OLED (Graphical) |
| Environmental Sensors | Compass, Temp, Pressure, Humidity | Compass, Temp, Pressure, Humidity | Angle only; Kestrel required for full data | Compass, Temp, Pressure, Humidity |
| Connectivity | Bluetooth / Vortex Relay | Bluetooth 5.x (BDX 2.0), Kestrel/Garmin | Bluetooth (Apple Watch, Kestrel 5700) | Bluetooth 5.x (BDX 2.0), Kestrel/Garmin, BaseMap |
| Mount Type | Picatinny Rail | Handheld | Handheld | Handheld Binoculars |
| Weight | 16.0 oz | ~10 oz | ~6.5 oz | ~38 oz |
| Waterproofing | Waterproof / Fogproof / Shockproof | IPX-4 | Weather-Resistant | IPX-4 |
| Ranging Accuracy | ±0.5 yds | ±0.5 yds | ±0.5 yds | ±0.5 yds |
| Warranty | VIP (Lifetime) | Infinite Guarantee | Limited | Infinite Guarantee |
| Pros | Integrated ballistic solver • Rail-mounted design • Onboard environmental sensors • Kestrel compatibility • Holds zero under recoil | Applied Ballistics Elite • AMOLED display • 8,000 yd reflective range • Kestrel/Garmin pairing • Fog and XR modes | Lightweight • Premium Leica optics • Apple Watch integration • Simple one-button interface • Compact design | 10,000 yd reflective range • 10x binocular format • Graphical OLED display • BaseMap integration • 3,000 yd deer range |
| Cons | Steep price point • Complex initial setup • Cold-weather display lag • Frequent compass recalibration • Steep learning curve | Handheld only • Requires BDX-scope for auto holdover • App configuration required • No rail-mount option | App-dependent ballistics • No onboard environmental sensors • Older LED display • Kestrel required for full ballistic data | Very expensive • Heavy binocular format • Overkill for most hunters • Large carry footprint |
The Vortex Impact 4000 is the only true rail-mounted option in this group, and that’s its biggest strength. Stay on the gun, range, get a solution, send it. That workflow advantage is real.
But the setup process, the compass recalibration travel rule, and the LCD drag in the cold are tough to ignore at this price. On a pure spec sheet, it doesn’t win.
The Sig Sauer KILO8K-ABS is a strong performer at a slightly lower price. It doubles the Impact 4000’s reflective range, the AMOLED display embarrasses the Impact’s LCD on side-by-side viewing, and it carries the Applied Ballistics Elite solver with 25 profiles.
The catch is simple. It’s handheld. If you shoot at night or need to range without coming off the gun, it loses the workflow battle to the Impact every time.
The Leica Rangemaster CRF 3500.COM is the most compact and optically refined unit here. Leica glass is exactly what you expect, and you barely feel it in a chest pocket. What kills it for serious long-range work is the ballistic setup. No onboard sensors. You’re leaning on the app and a Kestrel for any meaningful ballistic data.
It’s for hunters who want simplicity and superb glass, not a ballistic computer hanging off their kit.
The Sig Sauer KILO10K-ABS HD Gen II is expensive. There’s no softening that. But it earns the price tag with a 10,000-yard reflective range, 3,000-yard deer range, graphical OLED display, and BaseMap integration that puts it in a different tier entirely.
The binocular format adds versatility most monoculars can’t touch. It’s heavy, and for most hunters it’s way more rangefinder than they actually need. If you want the best raw performance money can buy, it’s right here.
To Summarize
The Impact 4000 doesn’t win on specs. The KILO8K-ABS beats it on range and display quality, and the KILO10K-ABS HD Gen II outperforms it in nearly every measurable category.
What the Impact 4000 does better than all three is workflow. Staying in the shooting position while the unit ranges and calculates for you is a legitimate practical advantage, especially in low light or time-sensitive situations. No other unit in this group does that.
If most of your hunting is from a stable position or you’re fine using a handheld between shots, the KILO8K-ABS gives you more range, a better display, and a proven solver at a slightly lower price. It’s the smarter buy when the rail-mounted form factor isn’t essential.
The Leica is quality glass dragged down by its ballistic dependency. The KILO10K-ABS is genuinely the top dog here, but the price and binocular format won’t work for everyone.
For pure ballistic capability, display quality, and range performance in a weapon-mounted platform, the Sig Sauer KILO WARP 6K would be the more direct upgrade path. That’s a separate conversation though. Within this group, if the rail-mounted workflow isn’t critical to how you hunt or compete, I’d take the KILO8K-ABS over the Impact 4000 without much hesitation. If rail-mounted, hands-free ballistic solutions are what you’re after and that workflow is the whole point, the Vortex Impact 4000 is still the right call. Just go in with open eyes about the setup process and display limitations.
Frequently asked questions
What is the maximum range of the Vortex Impact 4000?
The Vortex Impact 4000 has a maximum reflective range of 4,000 yards. On deer-sized targets, it reliably ranges out to 1,500 yards, and on trees up to 2,500 yards. Real-world performance depends on lighting and target reflectivity. In good daylight on open terrain, I hit the advertised deer range numbers consistently.
What ballistic solver does the Vortex Impact 4000 use?
The Vortex Impact 4000 uses the GeoBallistics solver, backed by a full, regularly updated bullet database. You can store up to ten customizable ballistic profiles built through the GeoBallistics app. The solver pulls real-time data from the unit’s onboard environmental sensors (compass, temperature, barometric pressure, humidity) to generate wind and drop solutions directly on the display.
Does the Vortex Impact 4000 work with night vision or thermal optics?
Yes, the Vortex Impact 4000 works with night vision and thermal clip-on systems. Because it’s rail-mounted, it ranges any target visible through your optic, which makes it far more useful after dark than a handheld unit. I ran it with a Pulsar Krypton 2 FXG50 thermal clip-on, and ranging and ballistic data stayed consistent with daytime performance.
How do you mount the Vortex Impact 4000?
The Vortex Impact 4000 mounts directly to any Picatinny-style rail using its integrated mount. You can also run it on a diving board mount to position it ahead of your scope’s objective. Zeroing uses the included Easy Zero Tool Kit and is straightforward. The unit holds zero reliably, even under heavy recoil from cartridges like .300 Win Mag.
Does the Vortex Impact 4000 require compass recalibration?
Yes, the Vortex Impact 4000 requires compass calibration during initial setup and whenever you travel more than 30 miles from the original calibration point. The process involves rotating the unit across five axes and takes a few minutes to complete. If you hunt across multiple regions or units in a trip, plan to recalibrate at each new location to keep environmental sensor data accurate.
What batteries does the Vortex Impact 4000 use?
The Vortex Impact 4000 uses a CR123A battery for the main unit and a CR2032 battery for the Bluetooth remote. Both are widely available at outdoor retailers. Battery life drops noticeably in cold weather below 20°F, so carrying a spare CR123A in the field is worth the minimal extra weight.
Why should you trust me
I’m Richard Douglas, firearms instructor, National Defense Security Consultant, and the person behind Scopes Field. I’m not a retired operator turned gear reviewer. What I bring is years of hands-on time with marksmanship and firearm optics, and a lot of money spent on gear that didn’t deliver.
Via-Vortex Optics
My work has been featured in publications like The National Interest and The Truth About Guns. I’ve also contributed directly to optics manufacturers including Bushnell and Leupold.
Every product I review gets tested personally. No outsourcing, no borrowed opinions.
