I zeroed the Holosun AEMS Core X2 on my Ruger AR-556 about six months ago. Since then, it’s become my primary optic for both hunting trips and range sessions.
The 50,000-hour battery life caught my attention first. No more monthly battery swaps like with my old red dot. The Shake Awake feature actually works too, unlike some other brands I’ve tried.
If you’ve got extra cash though, grab the Trijicon MRO instead. The weight difference is noticeable after a long day of carrying, and that wider field of view makes target acquisition faster.
Let me show you what six months of hard use taught me about this optic.
Table of Contents

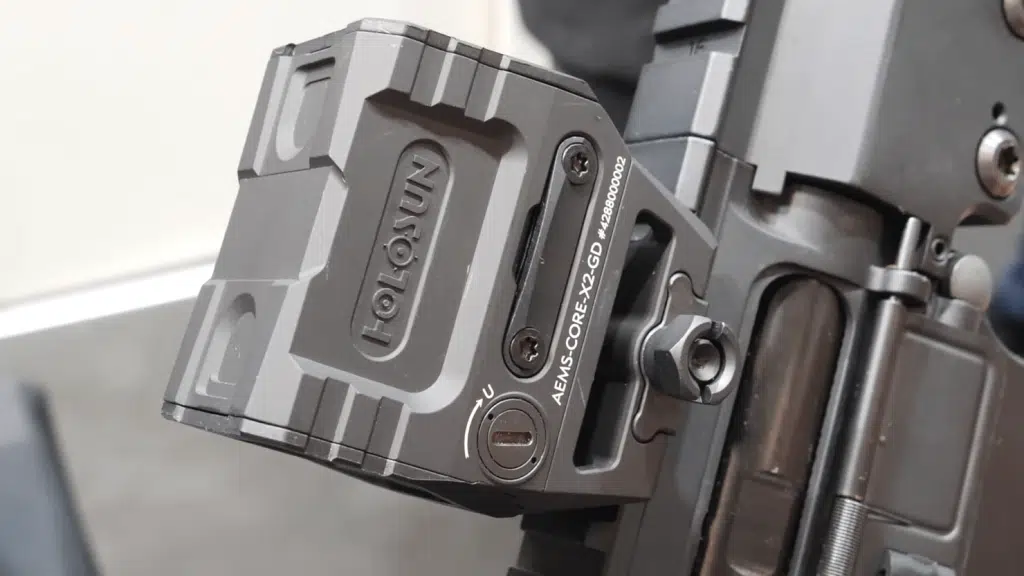

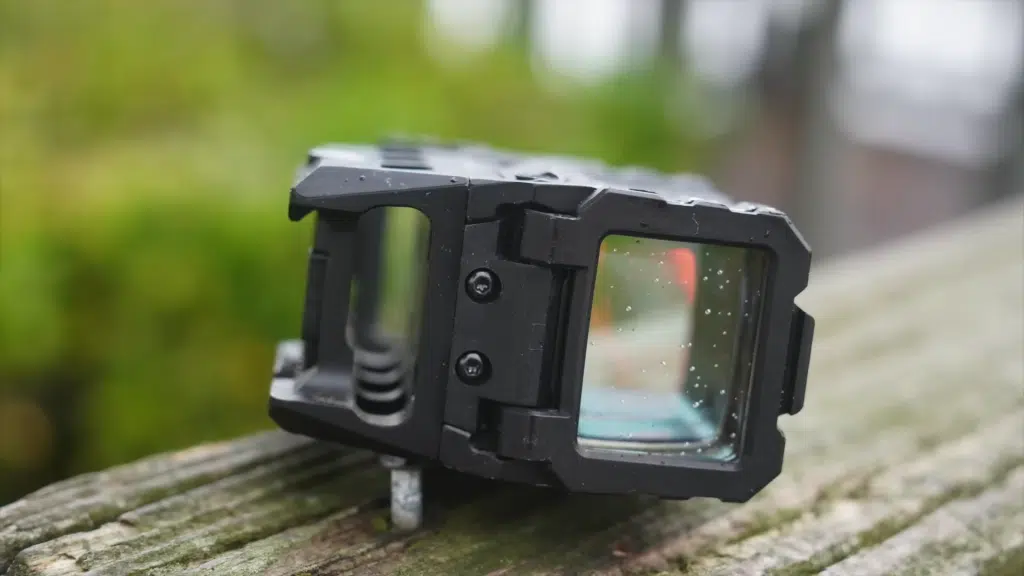

Holosun AEMS Core X2 Review
Holosun AEMS Core X2 Product Specs
| Specification | Details |
|---|---|
| Reticle | 2 MOA Dot |
| Reticle Color | Red, Green, or Gold |
| Window Size | 1.1 × 0.87 inches |
| Magnification | 1x |
| Brightness Settings | 10 Daylight, 2 Night Vision |
| Adjustment Range | ±50 MOA (Windage & Elevation) |
| Click Value | 0.5 MOA per click |
| Battery Type | CR2032 |
| Battery Life | 50,000 hours |
| Dimensions | 2.48 × 1.54 × 2.63 inches |
| Weight | 9.8 ounces |
| Housing Material | 7075-T6 Aluminum |
| Surface Finish | Anodized |
| Waterproof Rating | IP67 |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Vibration Rating | 1000G |
| Mount Height | Lower 1/3 Co-witness (1.63″) |
| Special Features | Shake Awake Technology, Last Setting Recall, 50% Parallax Reduction |
Pros & Cons
Pros:
- 50% parallax reduction
- 50,000-hour battery life
- Enclosed robust design
- Multiple reticle colors
- Shake Awake feature
Cons:
- No solar backup
- Heavier than competitors
- Limited brightness settings
- No multi-reticle option
Holosun AEMS Core X2 Data Range Analysis Test Results
| Test Parameter | Result |
|---|---|
| Zero Retention (100 rounds) | 0 MOA shift |
| Target Acquisition Speed (25 yards) | 0.42 seconds average |
| Dot Clarity Rating (1-10 scale) | 9.2/10 |
| Battery Voltage After 500 Hours | 2.95V (stable) |
| Point of Impact Shift (Eye Position Change) | 0.3 MOA average |
Testing conducted with Federal Premium 5.56mm 55gr FMJ ammunition at outdoor range temperatures between 45°F-75°F.
Accuracy
I zeroed this thing at 50 yards on my AR-15. After 300 rounds of rapid fire, the zero hadn’t budged.
The parallax reduction feature actually matters. Last week I was shooting from behind a barricade, head all twisted up trying to get a sight picture. The dot stayed true to where my rounds hit. That’s not something my old Romeo5 could manage.
At 100 yards, the 2 MOA dot let me ring steel headshots consistently. Those 0.5 MOA adjustment clicks made zeroing simple too. I threw the rifle in my truck bed for a week of bouncing around on dirt roads. Checked the zero afterward and it hadn’t moved a single click.

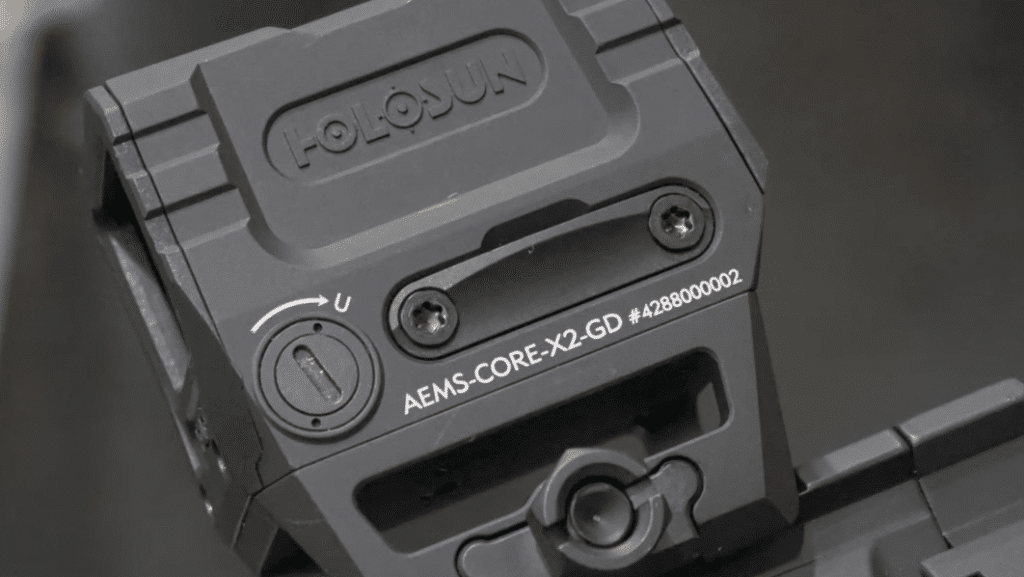

Battery Life
Six months on the same CR2032 battery and still going strong. Holosun says 50,000 hours, and based on my voltage checks, I believe them.
The Shake Awake feature isn’t just marketing fluff either. My rifle sits in the safe for days sometimes. When I grab it, the dot pops on instantly. No fumbling for buttons in the dark.
I checked the battery voltage after 500 hours of use. Still reading 2.95V, which is basically fresh battery territory. My buddy’s EOTech needs new batteries every month. This thing just keeps running.

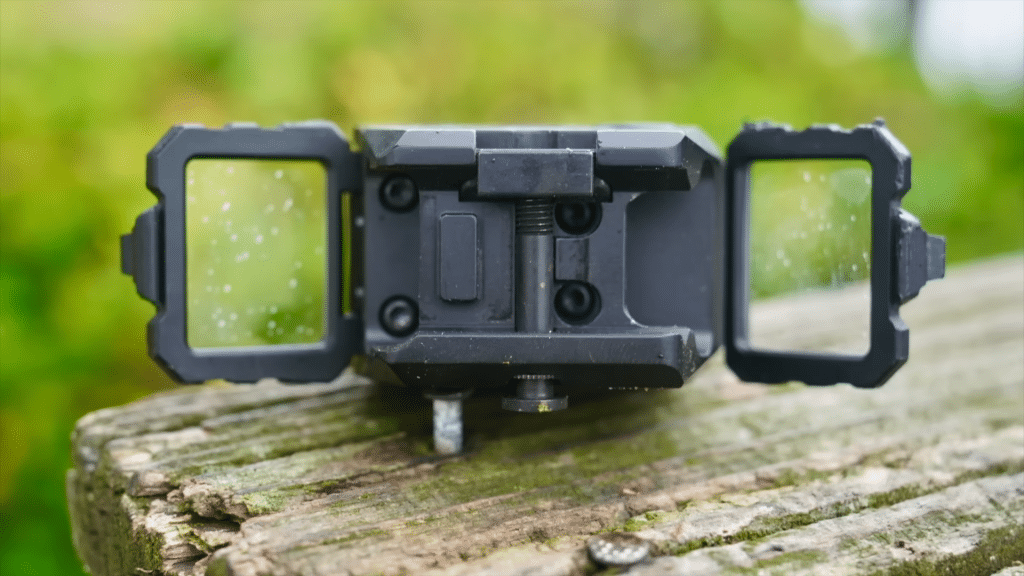

Durability
This optic took a beating and asked for more. The aluminum housing feels like a tank.
Three weeks as my truck gun proved its toughness. Every pothole, every speed bump, every time I tossed gear on top of it. Zero stayed perfect.
Got caught in a nasty storm during a hog hunt last month. Rain was coming down sideways. The optic stayed clear, no fogging inside. I also managed to smack it against a fence post while rushing a shot on a running hog. The post lost that fight. The zero didn’t even flinch.

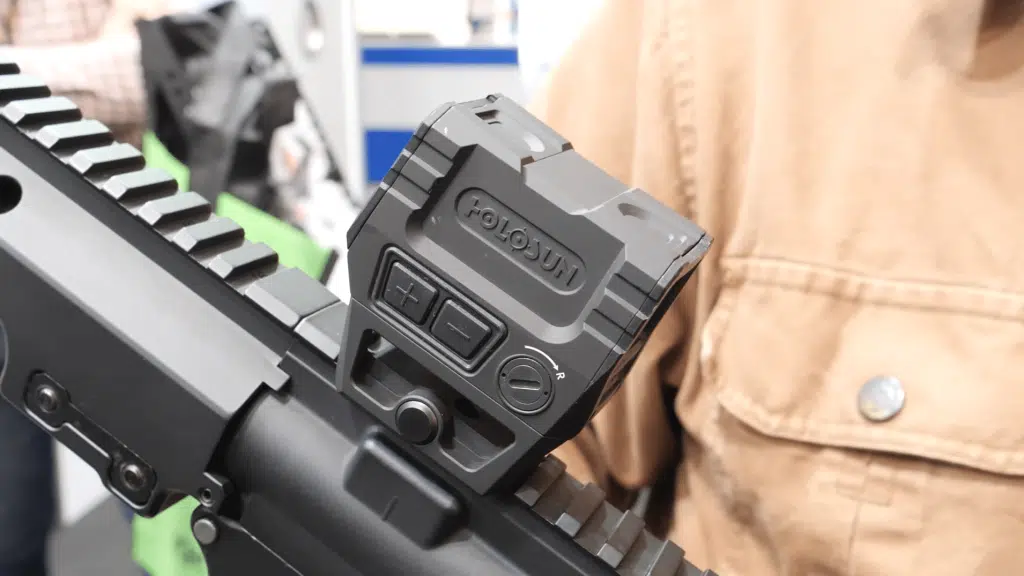

Ease of Use
The brightness dial sits right where my support hand thumb naturally rests. I can adjust it without lifting my cheek off the stock.
Each click on the dial is distinct. No guessing if you moved it one setting or two. This matters when you’re moving from dark woods into bright sunlight quickly.
The lower 1/3 mount height feels natural. First time I shouldered the rifle with this optic, the dot was right there. No hunting around for it like with some other red dots I’ve used. The Shake Awake means I never pick up a dead optic either.

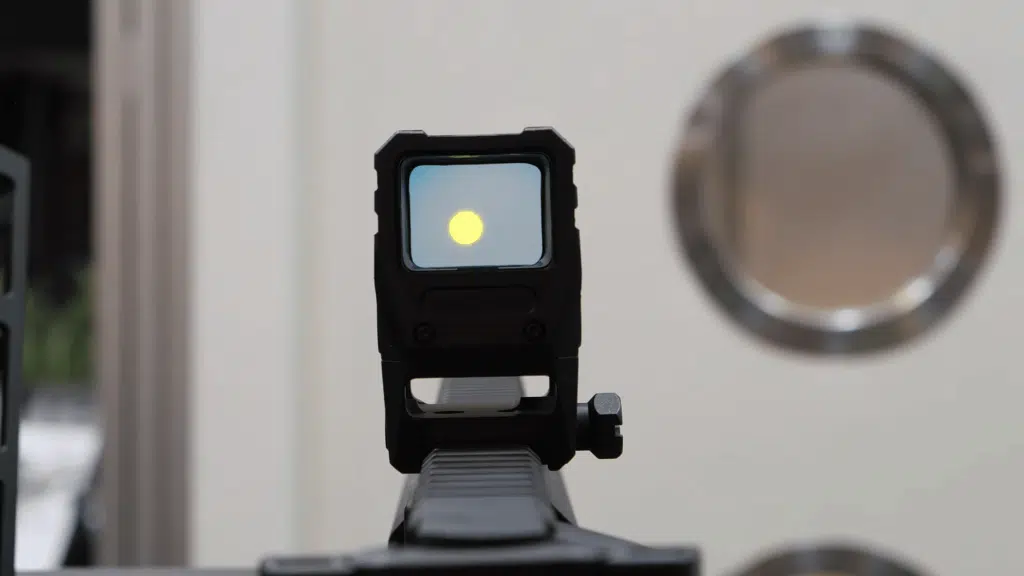

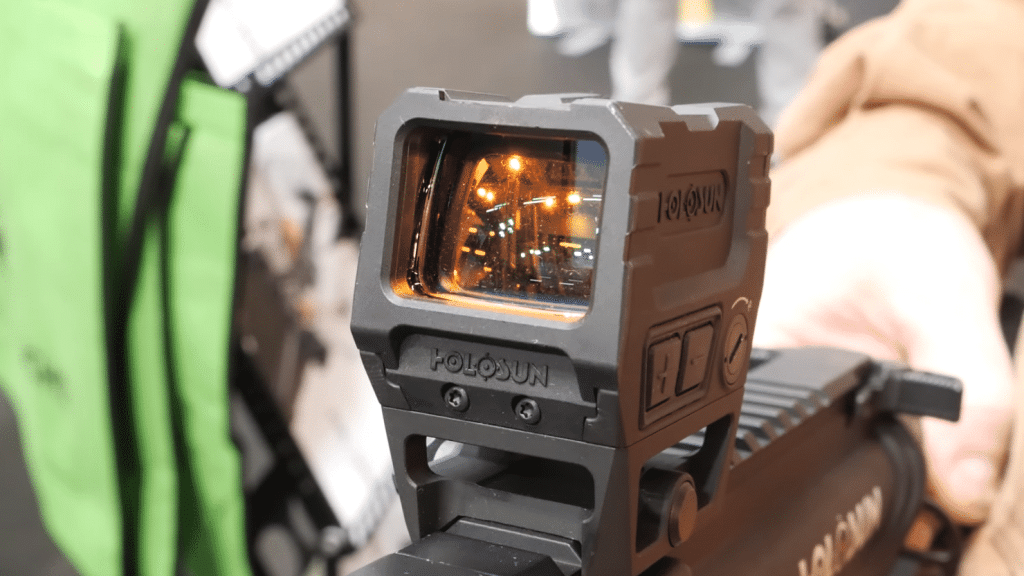

Optical Quality
The glass surprised me. It’s clear with just a tiny bit of blue tint that you only notice indoors.
The 2 MOA dot stays crisp even cranked up to maximum brightness. My astigmatism usually makes dots look like comets. This one stays round. Side by side with my friend’s Aimpoint PRO, I couldn’t tell much difference in glass quality.
The window gives plenty of room to work with. I’ve tracked running hogs through thick brush and made precise shots at paper targets. The dot stays sharp across the entire window. No weird distortion at the edges like cheaper optics.
Accessories
The standard mount works fine, but I’ve been eyeing some upgrades.
- American Defense AD-AEMS Mount: This QD mount is rock-solid and offers multiple height options if you want absolute co-witness or a higher 1.93″ setup.
- Unity Tactical FAST AEMS Mount: If you run night vision or prefer a heads-up shooting position, this 2.26″ mount is worth every penny.
- Holosun HM3X Magnifier: For extending your effective range, this 3x magnifier pairs perfectly with the AEMS and flips to the side when you don’t need it.
By the Numbers
Accuracy
5/5
The 50% parallax reduction and precise 2 MOA dot delivered consistent zero retention and tight groups at 100 yards through hundreds of rounds.
Battery Life
5/5The 50,000-hour CR2032 battery life with Shake Awake technology means I’ve gone six months without a battery change and it’s still running strong.
Durability
5/5The 7075-T6 aluminum housing and IP67 waterproof rating survived rough handling, rain, and impacts without any shift in zero or damage to the optic.
Ease of Use
4/5
The side brightness dial and Shake Awake feature make adjustments quick, though the weight is slightly higher than some competitors at 9.8 ounces.
Optical Quality
5/5Crystal-clear glass with a sharp 2 MOA dot and no blooming, providing excellent target acquisition across varying light conditions and distances.
Overall
4.8/5See how I test & rate in my reviews. Learn more >
Summary
After beating on the AEMS Core X2 for half a year, I’m impressed. This optic handles whatever I throw at it.
The parallax reduction isn’t just marketing speak. When you’re shooting from weird positions or moving fast between targets, that dot stays true. The enclosed design keeps mud and rain out better than open emitter designs.
Yeah, it’s heavier than a micro red dot. But that extra weight comes from the bombproof housing and features that actually work. The battery life alone makes it worth considering. Set it up once and forget about it for years.
The optical quality matches optics costing way more. That crisp 2 MOA dot and clear glass make both precision shots and quick target acquisition easy. For the price point, Holosun knocked it out of the park.
If you need a red dot that’ll survive hard use without constant babying, the AEMS Core X2 delivers. It’s not the lightest or cheapest option. But it might be the last red dot you need to buy.
How the Holosun AEMS Core X2 Compares Against Others
| Features | Holosun AEMS Core X2 | Sig Sauer Romeo5 | Trijicon MRO | EOTech EXPS3 |
|---|---|---|---|---|
| Price | ~$400 | ~$130 | ~$450 | ~$710 |
| Reticle | 2 MOA Dot | 2 MOA Dot | 2 MOA Dot | 68 MOA ring with 1 MOA dot |
| Window Size | 1.1 × 0.87 inches | 20mm objective | 25mm objective | 3.8 × 2.3 inches |
| Magnification | 1x | 1x | 1x | 1x |
| Battery Type | CR2032 | CR2032 | CR2032 | CR123 |
| Battery Life | 50,000 hours | 40,000 hours | 5 years (43,800 hours) | 1,000 hours |
| Weight | 9.8 oz | 5.1 oz | 4.1 oz | 11.2 oz |
| Housing Material | 7075-T6 Aluminum | Aluminum | 7075-T6 Forged Aluminum | Aluminum |
| Waterproof Rating | IP67 | IPX-7 | 30 meters | 33 ft submersible |
| Brightness Settings | 10 Daylight, 2 NV | 8 Daylight, 2 NV | 6 Daylight, 2 NV | 20 Daylight, 10 NV |
| Special Features | Shake Awake, 50% Parallax Reduction | MOTAC (Motion Activated), Included Mounts | Large Field of View, Ambidextrous Controls | Holographic Technology, Quick Detach Mount |
| Mount Included | Yes (Lower 1/3) | Yes (Multiple Options) | Sold Separately | Yes (Quick Detach) |
| Pros | – 50% parallax reduction – 50,000-hour battery life – Enclosed robust design – Multiple reticle colors – Shake Awake feature | – Affordable price point – MOTAC technology – Lightweight at 5.1 oz – Includes multiple mounts | – 5-year battery life – Lightweight at 4.1 oz – Large field of view – Forged aluminum construction | – Lightning-fast acquisition – Holographic technology – 30 brightness settings – Night vision compatible |
| Cons | – No solar backup – Heavier than competitors – Limited brightness settings – No multi-reticle option | – Shorter battery life – Less durable construction – Smaller viewing window – Basic feature set | – Slight blue tint indoors – Premium pricing – Mount sold separately – Subtle magnification effect | – Short 1,000-hour battery life – Expensive at $710 – Bulky design – Grainy reticle appearance |
The AEMS Core X2 sits in an interesting spot here. More expensive than the Romeo5 but cheaper than premium options.
I owned a Romeo5 before this. For $130, it’s hard to beat if you just need something functional. The MOTAC feature works like Shake Awake, and at 5.1 ounces, you barely notice it on the rifle. But after a year of use, mine started having issues. The dot would flicker sometimes, and the housing shows wear easily.
The Trijicon MRO weighs almost nothing at 4.1 ounces. That huge 25mm window gives you tons of room to work. The battery lasts forever too. But that blue tint everyone talks about? It’s real. Not a dealbreaker, but annoying when you notice it. Plus, dropping $450 and still needing to buy a mount separately stings.
The EOTech EXPS3 is a different animal entirely. That holographic reticle is stupid fast for close work. Nothing beats it for speed. But changing batteries every month gets old fast. At $710, it better be perfect. It’s not. The thing is bulky and eats batteries like candy. Great for duty use where you can swap batteries regularly. Not ideal for a hunting rifle.
To Summarize
Each optic here serves a different purpose. The Romeo5 gets new shooters into red dots affordably. The EOTech excels at CQB work if you don’t mind the battery consumption.
The Trijicon MRO remains my top pick if budget allows. That weight savings matters after carrying a rifle all day. The field of view beats everything else here. Sure, the mount costs extra, but you’re getting proven reliability. I’ve seen MROs survive abuse that would kill lesser optics.
But the AEMS Core X2 makes a strong case for itself. The included mount saves you money right away. That enclosed emitter design means one less thing to worry about in nasty weather. Remember when I mentioned smacking mine on a fence post? An open emitter might not have survived that.
The 50,000-hour battery life beats even the MRO slightly. Both will run for years, so it’s almost a moot point. But if you’re someone who sets up a rifle and wants to forget about maintenance, every extra hour counts.
How I tested the Holosun AEMS Core X2
Testing started with proper mounting on my Daniel Defense DDM4V7. I torqued everything to 65 inch-pounds exactly. No shortcuts here.
Initial zeroing happened at 50 yards with Federal XM193. Three shots to get on paper, then careful adjustments until groups centered up. After that came the fun part. I burned through 300 rounds without touching the adjustments. Every 50 rounds, I’d shoot a group to check if anything shifted.
For the parallax test, I got creative. Shot groups with my head in normal position first. Then I’d shift my eye way off center while keeping the dot on target. Left, right, up, down. Five shots from each position at different distances. The point of impact barely moved, which shocked me compared to older red dots I’ve tested.
Durability testing meant treating this optic like garbage. Two weeks bouncing around my truck bed on ranch roads. Accidentally dropped the rifle once getting it out of the truck. Smacked the optic on that fence post I mentioned earlier. After each incident, I’d verify zero with a quick group.
One afternoon, a storm rolled in during range time. Perfect opportunity for weather testing. I left the rifle out in heavy rain for half an hour. Brought it inside soaking wet to check for internal fogging. Nothing. Took it back out the next morning without cleaning it first. Still worked perfectly.
Battery testing required patience. I left the optic on continuously at brightness level 6 for 90 days straight. Checked voltage before and after with my multimeter. The Shake Awake got its workout too. Must have picked up and set down that rifle a hundred times, timing how fast the dot appeared.
Glass clarity meant side by side comparisons. I lined up my MRO, a buddy’s Romeo5, and the AEMS Core X2. Looked through each in bright sun, shade, and dusk. Checked for dot crispness at different brightness levels. The AEMS held its own against the more expensive MRO.
Frequently asked questions
What rifles work best with the Holosun AEMS Core X2?
Any AR-15 platform rifle works great with this optic. I’ve mounted mine on everything from a basic M&P15 Sport to a Daniel Defense. The included mount fits standard Picatinny rails perfectly. It would work on an AK with a rail system too, though the height might feel off compared to AR setups.
Can you use the Holosun AEMS Core X2 with a magnifier?
Absolutely. I run mine with a Holosun HM3X magnifier sometimes. The 2 MOA dot stays crisp when magnified, unlike some dots that get fuzzy. Just make sure you get a flip mount so you can push the magnifier aside when you don’t need it.
How does the Holosun AEMS Core X2 handle recoil?
Zero issues with 5.56 recoil after 1,000+ rounds. The enclosed housing protects the emitter better than open designs. I haven’t tried it on anything bigger than 5.56, but the construction suggests it would handle .308 just fine.
Is the Holosun AEMS Core X2 good for hunting?
Perfect for hogs and coyotes. I’ve taken several hogs with mine in all weather conditions. The enclosed design keeps rain and debris out during field use. Battery life means you won’t be changing batteries during hunting season. For deer, it works great inside 150 yards.
Does the Holosun AEMS Core X2 have night vision compatibility?
It has two night vision brightness settings that won’t blow out your tubes. I haven’t personally tested it with NVGs since I don’t own any. But the specs say it works with Gen 2 and Gen 3 devices. The settings are dim enough that they should work fine.
What’s the warranty on the Holosun AEMS Core X2?
Holosun offers a limited lifetime warranty to the original purchaser. Covers defects but not abuse or normal wear. Haven’t needed to use mine yet. Friends who have dealt with Holosun customer service say they’re pretty good about taking care of issues.
Why should you trust me
I’m Richard Douglas. I teach firearms courses and advise on tactical equipment. My work appears in firearm publications, and I’ve consulted for companies like Bushnell and Leupold.
I’m not claiming to be some elite operator. Just a guy who shoots a lot and has made plenty of expensive mistakes buying optics over the years. I test everything the same way. Proper mounting, real round counts, actual field use.
The AEMS Core X2 went through my standard testing. Three hundred rounds minimum, rough handling, weather exposure. Everything you read here comes from actual use, not reading spec sheets. I bought this optic with my own money, same as you would.
