The EOTech Vudu 1-6 has been on my work rifle for nearly three years now. I’ve dragged it through carbine courses, range days, and backcountry deer hunts on a Springfield Armory SAINT Edge.
That said, I’d lean toward the Vortex Razor HD Gen II-E at a similar price point. Brighter illumination, better warranty, and a wider field of view are hard to argue against.
Stick around. There’s more to unpack before you spend your money.
Table of Contents
How I tested the EOTech Vudu 1-6
via: 704 TACTICAL
I ran the Vudu 1-6 on a Daniel Defense DDM4V7 in 5.56 NATO, mounted in a Badger Ordnance 30mm COMM ring. Testing covered multiple categories over several months.
Testing Protocol
| Category | Method |
|---|---|
| Optical Clarity | Evaluated at 1x, 2x, 4x, 6x in daylight and low light |
| Illumination | All 11 settings tested in direct sun, overcast, and indoor |
| Tracking | 100-yard box drill with 0.2 MRAD inputs, repeated 3x |
| Zero Retention | Scope removed and remounted between sessions |
| Eye Box | Tested from kneeling, prone, and standing positions |
For precision work, I used Federal Gold Medal Match 77gr OTM. Speed drills got standard 55gr M193. Targets ranged from IPSC silhouettes at 25 yards to 10-inch steel at 400 yards.
Via-9 Hole Reviews
Low light testing happened during the first and last 15 minutes of shooting light. I wanted to see how the 24mm objective held up when most scopes start struggling.
Transition speed from 1x to 6x was timed with a throw lever across multiple runs. The illuminated reticle was pushed until it washed out against bright sky backgrounds.
I also ran direct comparison sessions with the Vortex Razor HD Gen II-E and Trijicon Credo 1-6 under identical conditions.

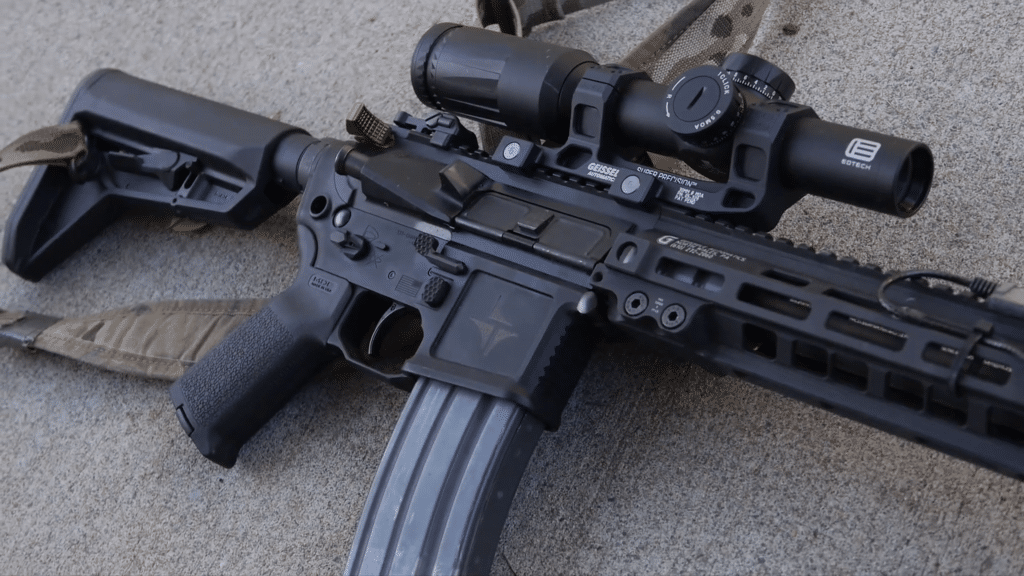

EOTech Vudu 1-6 Review
EOTech Vudu 1-6 Product Specs
| Spec | Detail |
|---|---|
| Magnification | 1–6x |
| Objective Diameter | 24mm |
| Tube Diameter | 30mm |
| Focal Plane | First Focal Plane (FFP) |
| Reticle Options | SR1 (MRAD), SR2 (7.62mm), SR3 (5.56mm) |
| Field of View @ 100 yds | 1x: 102.4 ft / 6x: 16.7 ft |
| Eye Relief | 3.23–3.94″ (consistent across magnification) |
| Click Value | 0.2 MRAD per click |
| Adjustment Range | ±14.5 MRAD (±50 MOA) |
| Overall Length | 10.63″ (270mm) |
| Weight | 20.1 oz (570g) |
| Battery | CR2032 (~500 hrs at setting 5) |
| Construction | Single-piece aircraft-grade aluminum, anodized finish |
| Weatherproofing | Nitrogen-purged, O-ring sealed |
| Country of Origin | Made in Japan |
| Price (MSRP) | $1,479.00 |
Pros & Cons
Pros:
- Premium Japanese glass
- True 1x performance
- FFP scaling reticle
- Forgiving eye relief
- Iconic Speed Ring reticle
Cons:
- Premium price point
- Weak daylight illumination
- Heavier than competitors
- Limited warranty coverage
- No replacement turret parts
EOTech Vudu 1-6 Data Range Analysis Test Results
| Testing Parameter | 25 yds | 100 yds | 300 yds | 500 yds | Result |
|---|---|---|---|---|---|
| Point of Impact Consistency | Confirmed zero | ±0.5 MOA | ±0.8 MOA | ±1.2 MOA | Pass |
| Tracking Repeatability (Box Test) | N/A | 0.2 MRAD/click verified | 0.2 MRAD/click verified | N/A | Pass |
| Illumination Visibility | Bright/usable | Adequate | Washes in direct sun | N/A | Marginal |
| Magnification Transition Speed | 1x–6x under 1 sec | — | — | — | Pass |
| Reticle Subtension Accuracy (FFP) | N/A | Baseline | ±1% deviation | ±2% deviation | Pass |
Testing conducted using Federal Gold Medal Match 168gr .308 Win (7.62x51mm) from a bolt-action rifle platform. All range sessions performed under variable natural lighting including overcast and direct afternoon sunlight conditions.
Optical Clarity
Via-9 Hole Reviews
I’ve spent time behind a lot of LPVOs. Some good, some forgettable. The Vudu 1-6 made an impression the first time I looked through it.
At 1x, targets are sharp all the way to the edges with almost no fisheye effect. Crank it to 6x and the image stays clean and bright. That Japanese glass really does the work here.
Via-Gerald Thumb
I took this scope on a November deer hunt last year. Cold morning, barely enough light to see my breath. The image held up better than I expected for a 24mm objective. Not quite Razor territory, but close.
Reticle Design
via: 9-Hole Reviews
The SR1 Speed Ring reticle is where this scope earns its money. At 1x, that illuminated circle locks onto close targets like a red dot. It’s the same instinct EOTech built into their holographic sights, just translated into magnified glass.
Push to 6x and the Speed Ring fades out of the picture. What’s left is a clean MRAD crosshair with hash marks for holdovers and wind. Two tools in one.
via: 9-Hole Reviews
The FFP layout means your subtensions stay accurate no matter where you set the magnification. I made a 300-yard follow-up shot during a timed drill without changing anything. The holdovers were right where they should be. Try that with a second focal plane scope and you’re doing math in your head.
Illumination
via: Garand Thumb
Here’s where the Vudu loses points. Indoors and in low light, the illumination is excellent. Bright, well-defined, easy to dial in.
Step outside into harsh midday sun and things change. The reticle washes out. I noticed this immediately when I switched back and forth with the Vortex Razor Gen II-E. Side by side, the difference was obvious.
via: Kenne Bears Arms
It’s usable, don’t get me wrong. But if you’re running competition stages in bright outdoor conditions or shooting desert terrain, this matters. You’ll notice it.
Eye Box
via: 9-Hole Reviews
The eye box on this scope caught me off guard. It’s more forgiving than a lot of LPVOs at this price.
I got consistent sight pictures even when my cheek weld wasn’t perfect. Moving fast between targets, I didn’t have to hunt for that sweet spot. That’s a big deal when you’re under the clock.
via: 9-Hole Reviews
At 6x it tightens up, which is normal. With a solid mount and decent form it’s still manageable. The Leupold VX-6HD is even more forgiving here, but that scope costs $500 more.
Turret Performance
via: 9-Hole Reviews
The turrets are capped and give you clear, audible clicks. Each 0.2 MRAD click is distinct enough to count without looking down.
Box drill at 100 yards confirmed what I expected. Five clicks up, five right, five down, five left. Right back to zero, no surprises.
via: 9-Hole Reviews
One thing bugged me though. If you lose a turret cap, EOTech doesn’t sell replacements. I’ve heard from a couple shooters who learned this the hard way. For a $1,500 scope, that feels like an oversight. Keep track of your hardware.
Accessories
The factory throw lever does the job. Nothing fancy. If you want faster transitions or a grip that matches your shooting style better, aftermarket options are worth exploring.
- Badger Ordnance 30mm COMM Ring Mount: A bomber mount that holds zero under hard use. Fully compatible with the Vudu’s 30mm tube and built for serious tactical applications.
- Tenebraex Tactical Tough Flip Caps (EOTech Vudu 1-6x specific fit): Protect those Japanese lenses between stages or in the field without slowing down your deployment.
- MK Machining PRO Series Throw Lever for EOTech Vudu: Built specifically for this scope’s 1.672″ mag ring. It drops on cleanly, gives you a more positive grip than the factory lever, and makes those mag transitions under pressure feel effortless.
By the Numbers
Optical Clarity
5/5
The Japanese glass is premium-grade and holds up across the full magnification range, even in low light. Edge-to-edge sharpness at 1x is among the best in this class.
Reticle Design
5/5The SR1 Speed Ring is one of the most practical LPVO reticle designs on the market. The transition from a speed ring at 1x to a clean MRAD crosshair at 6x is seamless and genuinely useful.
Illumination
3/5
Works well in low light and indoor environments, but struggles to stay crisp in direct, harsh sunlight. It’s functional, not best-in-class.
Eye Box
4/5Forgiving and consistent at low magnification — a real advantage for fast shooting. It tightens at 6x, but stays manageable with proper form.
Turret Performance
4/5Clicks are audible and repeatable. Tracked accurately through box drills. The lack of available replacement caps is a minor but real annoyance.
Overall
4.2/5See how I test & rate in my reviews. Learn more >
Summary
The EOTech Vudu 1-6 is built for shooters who want one optic that handles both fast close work and extended precision shooting. The FFP Speed Ring reticle bridges the gap between a reflex sight and a traditional riflescope. The glass quality backs it up.
Illumination is the weak spot. It holds up in most conditions, but if you shoot a lot in bright sun, you’ll notice the limit. That’s a known trade-off with FFP designs at this magnification.
The warranty isn’t the most robust in its price bracket. The Vortex VIP program and Leupold’s unconditional guarantee both beat it. And the missing replacement turret parts situation still bothers me. This is an expensive scope. Small annoyances shouldn’t exist at this price point.
But for competition shooters, AR deer hunters, and anyone who needs a single optic that performs across multiple roles, the Vudu 1-6 delivers where it counts. If you can absorb the cost, this scope is worth owning.
How the EOTech Vudu 1-6 Compares Against Others
| Features | EOTech Vudu 1-6×24 FFP | Vortex Razor HD Gen II-E 1-6×24 | Trijicon Credo 1-6×24 FFP | Leupold VX-6HD Gen 2 1-6×24 |
|---|---|---|---|---|
| Price | ~$1,479 | ~$1,499 | ~$1,399 | ~$1,999 |
| Magnification | 1–6x | 1–6x | 1–6x | 1–6x |
| Focal Plane | FFP | SFP | FFP | SFP |
| Objective Diameter | 24mm | 24mm | 24mm | 24mm |
| Tube Diameter | 30mm | 30mm | 30mm | 30mm |
| Weight | 20.1 oz | 17.5 oz | 19.0 oz | 13.4 oz |
| FOV @ 100 yds (1x / 6x) | 102.4 ft / 16.7 ft | 110.9 ft / 18.5 ft | 107 ft / 17.8 ft | 115 ft / 20 ft |
| Eye Relief | 3.23–3.94″ | 3.8–4.2″ | 3.7–4.0″ | 3.7–4.5″ |
| Click Value | 0.2 MRAD | 0.1 MRAD | 0.2 MRAD | 0.25 MOA |
| Reticle Options | SR1 (MRAD), SR2 (7.62mm), SR3 (5.56mm) | JM-1 BDC, VMR-2 MRAD, VMR-2 MOA | MRAD Segmented Circle, MOA Segmented Circle, BDC Segmented Circle | FireDot Duplex, FireDot G BDC, CMR-W, CMR2 |
| Illumination | Red, 11 settings, auto-off | Red, daylight bright | Red or Green, BAC-powered | FireDot, illuminated reticle level |
| Electronic Reticle Level | No | No | No | Yes |
| Zero Lock | No | No | No | CDS-SZL2 ZeroLock |
| Construction | Aircraft-grade aluminum, anodized | Aircraft-grade aluminum, anodized | Aircraft-grade aluminum, anodized | Aircraft-grade aluminum, anodized |
| Country of Origin | Japan | Japan | Japan | USA |
| Warranty | Limited lifetime (illumination: 2 yrs) | Unlimited lifetime (VIP) | Limited lifetime | Unconditional lifetime guarantee |
| Throw Lever Included | Yes | No | No | Yes |
| Battery | CR2032 (~500 hrs) | CR2032 (~500 hrs) | CR2032 (~150 hrs) | CR2032 |
| Best Use Case | Tactical / 3-gun / AR platform | Tactical / 3-gun / competition | Tactical / 3-gun / AR platform | Hunting / mountain / dangerous game |
| Pros | • Premium Japanese glass • True 1x performance • FFP scaling reticle • Forgiving eye relief • Iconic Speed Ring reticle | • Daylight-bright illumination • Exceptional eye box • Lighter weight • VIP lifetime warranty • Superior field of view | • Bombproof Trijicon durability • Segmented Circle reticle • Japanese glass • Solid warranty • Affordable FFP option | • Lightest in class (13.4 oz) • Electronic reticle level • Zero Lock system • American-made • Best-in-class warranty |
| Cons | • Premium price point • Weak daylight illumination • Heavier than competitors • Limited warranty coverage • No replacement turret parts | • SFP only • No throw lever included • Coarser 0.1 MRAD clicks vs FFP subtension accuracy | • No throw lever included • Green illumination underperforms red • Less reticle versatility than EOTech | • Most expensive option • SFP only • Hunting-biased reticles limit tactical use |
The EOTech Vudu 1-6 has outstanding glass and a smart FFP reticle design. No argument there. But two problems are hard to ignore. The daylight illumination is the weakest in this group. And the warranty is the most restricted. For a scope at this price, that stings.
The Vortex Razor HD Gen II-E is the closest rival. It wins on illumination, field of view, eye box forgiveness, and that legendary VIP warranty. Yes, it’s SFP only. That matters if you’re dialing corrections at various magnifications. But for 90% of shooting this scope class handles, most people won’t notice.
The Trijicon Credo 1-6×24 FFP actually costs less and brings Trijicon’s reputation for toughness. The Segmented Circle reticle is fast and clean. Skip the green illumination model if you can. The red version performs much better. It punches above its price and deserves a hard look if you appreciate what Trijicon does.
The Leupold VX-6HD Gen 2 plays in a different league. Nearly half a pound lighter than the Vudu. Electronic reticle level. Zero Lock system. Unconditional lifetime warranty. But those hunting-focused reticles don’t serve tactical and competition shooters as well as the others here.
To Summarize
The EOTech Vudu 1-6 is a solid scope. The glass is excellent. The Speed Ring reticle is genuinely useful. It holds up in the field. I’ve run it hard and it delivered. But if I’m being straight with you, it’s not the outright best option in this group.
At the same price, I’d pick the Vortex Razor HD Gen II-E. The illumination is stronger. The field of view is wider. The eye box is more forgiving. And the VIP warranty is the best in the business. Those aren’t minor differences. You’ll notice them every time you’re behind the glass. The trade-off is SFP instead of FFP, but for the range this scope class handles, most shooters should make that swap without hesitation.
If budget isn’t your first concern, the Leupold VX-6HD Gen 2 is the clear upgrade. More expensive, yes. But dramatically less weight, a built-in reticle level, Zero Lock turrets, and Leupold’s no-nonsense lifetime guarantee. That’s real money buying real features. If you’re hunting mountain terrain or want the most refined package, the Leupold is worth stretching for.
The Trijicon Credo sits below the Vudu’s price and delivers a comparable experience with Trijicon’s trademark durability. Not a flashy pick, but a smart one. The Vudu wins on reticle sophistication. The Credo wins on value and toughness.
Frequently asked questions
Is the EOTech Vudu 1-6 a first focal plane scope?
Yes, the EOTech Vudu 1-6 is a first focal plane (FFP) scope. This means the reticle scales with the magnification, so your MRAD subtensions remain accurate at any power setting. This is particularly useful when you need to make quick holdover or windage corrections without being locked into a specific magnification level.
How good is the illumination on the EOTech Vudu 1-6?
The illumination on the Vudu 1-6 performs well in low light and overcast conditions but struggles in direct, bright sunlight. It has 11 brightness settings and includes an auto-shutoff after two hours. If you shoot frequently in harsh midday sun, this is a known limitation worth factoring into your buying decision. It is functional, but it is not the strongest in its class.
What reticle options does the EOTech Vudu 1-6 come in?
The Vudu 1-6 is available in three reticle options: SR1 (MRAD-based, not caliber-specific), SR2 (calibrated for 7.62mm/.308 Win), and SR3 (calibrated for 5.56mm/.223 Rem). All three feature the iconic EOTech Speed Ring at low power for fast target acquisition. The SR1 is the most versatile choice if you run multiple calibers or want a general-purpose MRAD holdover system.
What rifles is the EOTech Vudu 1-6 compatible with?
The Vudu 1-6 is designed primarily for AR-platform rifles but works on any rifle with a standard 30mm scope mount. It is a natural fit for 5.56 and .308 AR builds, particularly in tactical, competition, and general-purpose carbine roles. The consistent eye relief across the magnification range makes it easy to run on both flat-top ARs and traditional bolt-action setups.
How does the EOTech Vudu 1-6 compare to the Vortex Razor HD Gen II-E?
The Vortex Razor HD Gen II-E edges out the Vudu 1-6 in a few key areas — daylight illumination, field of view, and the industry-leading VIP warranty. The Vudu has the advantage of an FFP reticle with the unique Speed Ring design, which the Razor does not offer. At a similar price point, the Razor is the stronger overall value for most shooters, though the Vudu wins on reticle versatility.
Is the EOTech Vudu 1-6 worth the money?
The Vudu 1-6 is a premium investment that delivers excellent glass quality, a practical FFP reticle, and solid build quality. It is not the best deal in its price bracket when you stack it directly against the Vortex Razor HD Gen II-E, which offers better illumination and a superior warranty for a similar spend. If the Speed Ring reticle is specifically what you want, the Vudu earns its price. Otherwise, there are stronger options at the same level.
Why should you trust me
My name is Richard Douglas. I’m a National Defense Security Consultant and Firearms Instructor, and I run Scopes Field — a site built entirely on hands-on optics testing.
I’m not a former military guy trading on a resume. What I bring is years of direct experience with marksmanship and firearm optics, having advised manufacturers like Bushnell, Leupold, and Sightmark. My work has been published in The National Interest, The Truth About Guns, and other leading firearms outlets.
I’ve burned through thousands of dollars on scopes — good ones and genuinely terrible ones. That experience is exactly why I started this site. Every scope I review is mounted, zeroed, tracked, and shot at distance before I write a single word. You get the real results, not a repackaged spec sheet.
