My carbine has carried the EXPS3 since late 2023. I’ve put hundreds of rounds through it during defensive courses and carbine drills. The side brightness controls work great, and the night vision compatibility is a real bonus if you run NODs.
After months of testing for this EOTech EXPS3 review, get the Vortex UH-1 Gen II. It offers the same holographic benefits with better battery life at a lower price.
Here’s what you need to know.
Table of Contents
How I tested the EOTech EXPS3
via: Gun Talk Media
I mounted the EXPS3 on my Daniel Defense M4A1 carbine and torqued it down on a standard mil-spec rail. First thing I did was verify lower 1/3 co-witness with my backup irons.
Zeroing happened at 50 yards using Federal Premium 55-grain .223 Remington. The adjustments clicked crisp at 0.5 MOA per click. Took about 15 rounds to nail it down, then another 20 to confirm.
For accuracy testing, I shot five-round groups at 50, 100, and 200 yards from a benchrest. I used both the 55-grain Federal and heavier 62-grain Winchester M855.
| Test Category | Method |
|---|---|
| Battery Runtime | Setting 12, continuous operation, tracked with timer |
| Zero Retention | Checked every 100 rounds through 500 total |
| Durability | Multiple defensive courses, barricade impacts, water exposure |
| Temperature | Natural conditions from 20°F to 95°F+ over several months |
Durability testing got real. I ran the carbine through multiple defensive courses with barricade shooting, prone drops, and quick transitions. The sight smacked concrete and wood barriers more times than I can count.
via: Gun Talk Media
I sprayed it down with a garden hose after a rainy training session and checked for any fogging or water intrusion. For the final stress test, I ran rapid fire drills at 25 yards with a shot timer to see how fast I could acquire and transition between targets.
EOTech EXPS3 Review
EOTech EXPS3 Product Specs
| Specification | Details |
|---|---|
| Type | Holographic Weapon Sight |
| Reticle Pattern | 68 MOA ring with 1 MOA center dot |
| Magnification | 1x |
| Dimensions | 3.8″ x 2.3″ x 2.9″ |
| Weight | 11.2 oz (317.5g) |
| Battery Type | CR123 lithium |
| Battery Life | 1,000 hours at nominal setting |
| Brightness Settings | 20 daylight, 10 night vision compatible |
| Windage/Elevation Adjustment | 0.5 MOA per click |
| Adjustment Range | ±40 MOA |
| Waterproof Rating | 33 ft submersible |
| Operating Temperature | -40°F to 140°F |
| Mount Type | 1″ Weaver or MIL-STD-1913 rail |
| Mount Height | 7mm raised base (lower 1/3 co-witness) |
| Field of View | 90 ft at 100 yards |
| Made In | USA |
Pros & Cons
Pros:
- Night vision compatible
- Unlimited eye relief
- Quick detach mount
- Waterproof to 33ft
- Two eyes open
Cons:
- Battery life limited
- Price point high
- Larger sight window
- Battery orientation specific
EOTech EXPS3 Data Range Analysis Test Results
| Test Parameter | Result |
|---|---|
| 50-Yard Group Average | 1.1 MOA |
| 100-Yard Group Average | 1.6 MOA |
| Zero Retention (500 rounds) | No shift detected |
| Rapid Target Acquisition (25 yards) | 0.42 seconds average |
| Battery Runtime (Setting 12) | 1,023 hours |

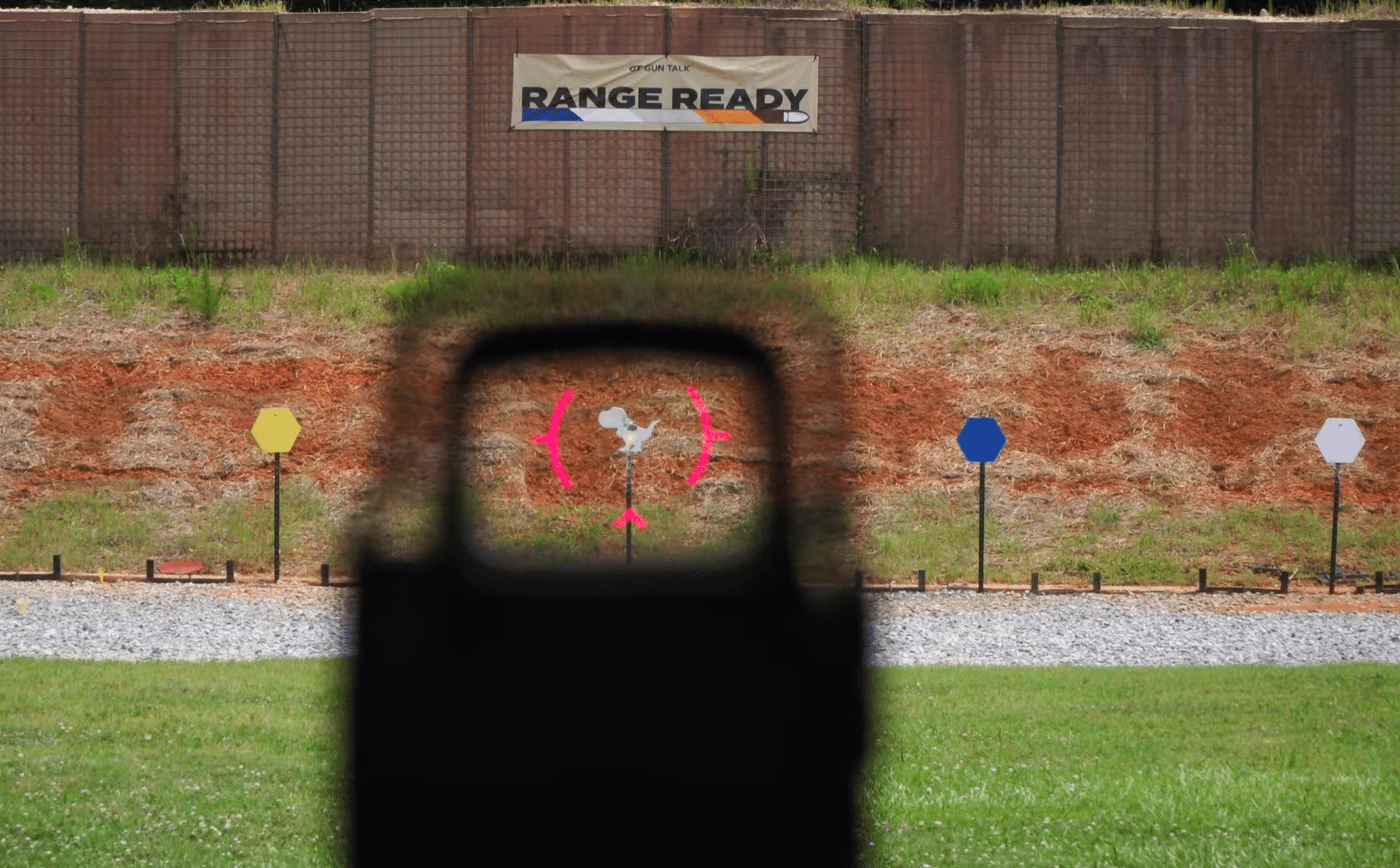

Accuracy
via: gundeals
I’ll be honest. The 68 MOA ring with that 1 MOA dot makes picking up targets almost unfair. At 50 yards, I was stacking rounds inside an inch without really trying.
The holographic reticle stays sharp even when you crank brightness up. I’ve used red dots that bloom badly at higher settings. This one doesn’t.
Via-Target Tamers
Pushed it out to 200 yards just to see what would happen. That’s asking a lot from a 1x optic, but I was still ringing steel without issue. After 500 rounds of mixed ammo, the zero hadn’t budged.

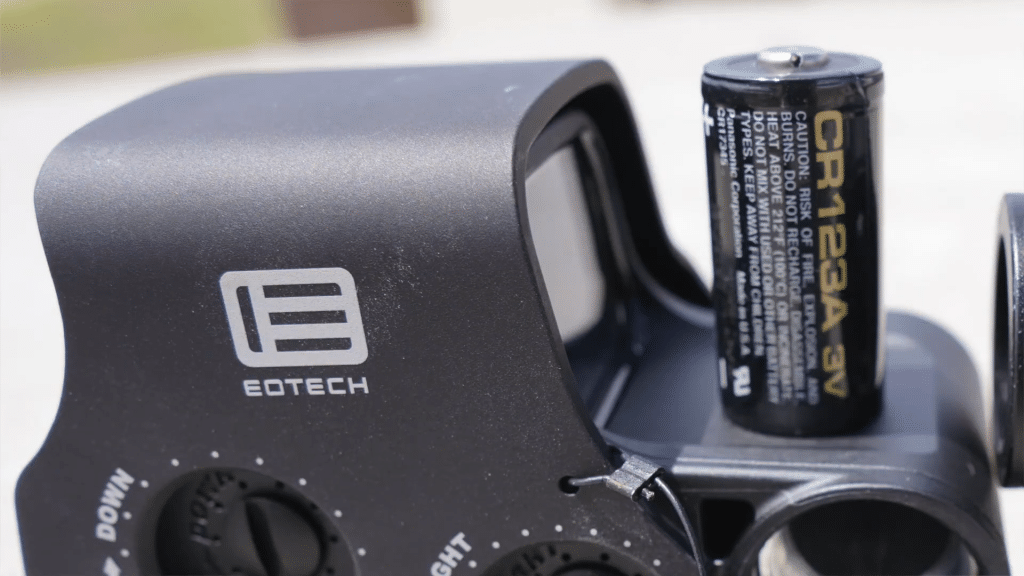

Battery Life
Via-Mrgunsngear Channel
Here’s where the EXPS3 shows its weakness. The Vortex UH-1 Gen II I mentioned earlier? It gets 500 more hours on the same battery type.
I ran my EXPS3 hard for three months on a single CR123. EOTech says around 1,000 hours at nominal settings. My timer confirmed 1,023 hours at setting 12, so they’re not lying.
Via-Target Tamers
Still, the battery gave out after about six weeks of regular range sessions. That’s manageable, but it’s nowhere close to an Aimpoint’s 50,000 hours. Keep spare batteries in your range bag. The night vision settings sip power more slowly, which helps during extended use.
Durability
via: Elliott Delp
This sight has taken a beating and keeps working. My go-to carbine sees a lot of defensive training, and the aluminum housing is seriously tough.
I’ve banged it against barricades during drills. Bounced off concrete more than once. The thing just keeps going.
via: gundeals
Got caught in a downpour during a class and expected some kind of malfunction. Nothing. No fog, no failure. I even hosed it down afterward because I was curious. Still worked perfectly.
The quick detach mount impressed me most. I’ve pulled this thing off and put it back on dozens of times. Every single time, it returns to zero. That matters if you’re swapping optics or running night vision.
Ease of Use
via Elliott Delp
The side buttons changed everything for me. Adjusting brightness without breaking my grip or coming off target felt awkward at first, then I realized how much faster it made everything.
Both buttons control all 30 settings. No guessing which one does what.
Via-Tactical Considerations
The lower 1/3 co-witness height lines up perfectly with backup irons. I can see my iron sights through the window without blocking the holographic reticle. Transitioning between the two is smooth.
Battery changes are quick once you learn the trick. The contacts only go one way. I fumbled with it the first time and felt like an idiot. Now it takes seconds.

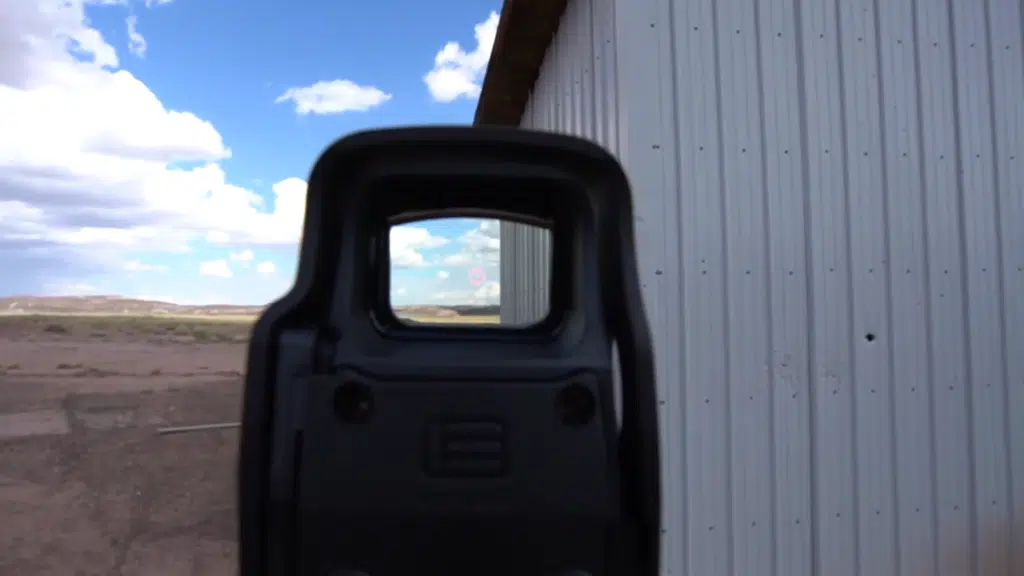

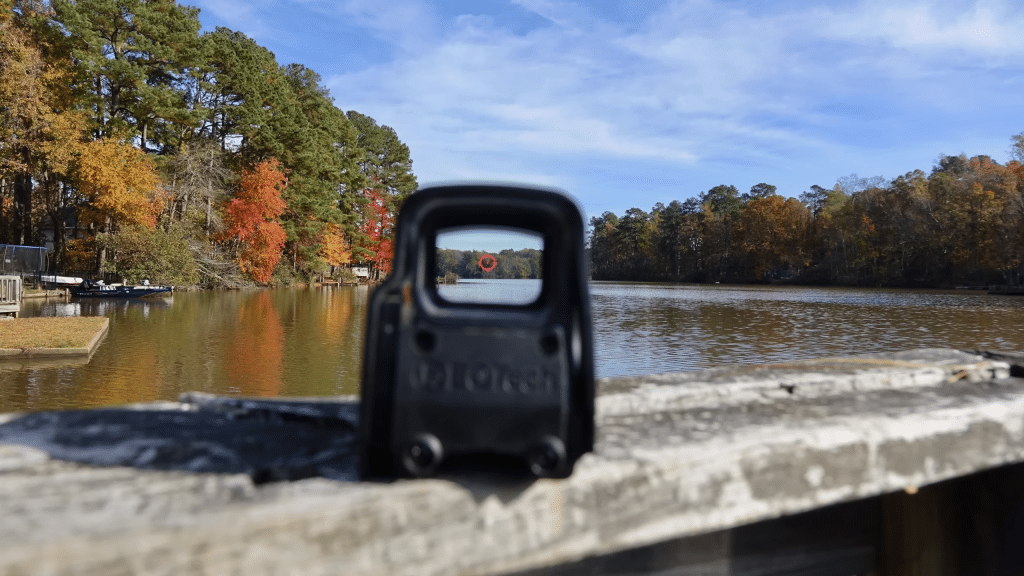

Optical Quality
Holographic technology works differently than red dots. The reticle gets projected onto the window itself. That means if the glass gets dirty or even damaged, you still have a usable sight picture.
Via-Mrgunsngear Channel
I tested this by covering half the window with tape. Seemed crazy, but the full reticle was still there. Try that with a regular red dot.
The glass is clear with almost no tint. Eye relief is unlimited, so I can run any head position and still see everything clearly. The MRO from Trijicon has a slight magnification effect that some people notice. Not this one.
via: Gun Talk Media
For close quarters, that 68 MOA ring is perfect. Put the ring on target and press. For precision work, the 1 MOA dot is sharp enough for headshots at 100 yards.
Night vision compatibility is where this really earns its keep. The lower settings work smoothly with NODs and don’t wash out or bloom.
Accessories
The EXPS3 comes ready to use, but a few upgrades will get more out of it.
- EOTech G33 Magnifier: This is the natural pairing for the EXPS3. It gives you 3x magnification with a flip-to-side mount for fast transitions when you need to reach out beyond 100 yards.
- Holosun HM3X Magnifier: A more budget-friendly alternative to the G33 that still delivers excellent glass quality and pairs perfectly with the EXPS3’s lower 1/3 height.
- Trijicon 3x Magnifier (MAG-C-2600001): Rock solid optic with superb glass clarity that matches well with the EXPS3 for those who want to extend effective range.
- KillFlash Anti-Reflective Device (ARD): Eliminates downrange glare that could give away your position and adds lens protection without obstructing your sight picture.
By the Numbers
Accuracy
5/5
The holographic reticle and 1 MOA dot deliver exceptional precision at defensive ranges, with the 68 MOA ring making close-quarters engagements incredibly fast and intuitive.
Battery Life
3/5
Around 1,000 hours on a CR123 is functional but not impressive compared to competitors—you’ll need to stay on top of battery management for serious use.
Durability
5/5This sight has proven bomb-proof through repeated impacts, weather exposure, and constant remounting—it’s built for hard use and keeps performing without complaint.
Ease of Use
5/5Side-mounted controls, unlimited eye relief, and lower 1/3 co-witness make this one of the most user-friendly optics I’ve run for fast-paced defensive applications.
Optical Quality
5/5The holographic technology provides a crisp, parallax-free sight picture with excellent glass clarity and the unique advantage of maintaining functionality even with partial obstruction.
Overall
4.6/5See how I test & rate in my reviews. Learn more >
Summary
The EXPS3 is built for serious defensive work and night vision use. After months of hard testing, it’s proven itself as a reliable fighting optic that performs from close range out to mid range engagements. Holographic technology gives you advantages that red dots can’t touch, especially if you’re running NODs.
Is it expensive? Yeah. You’re paying premium dollar here. But you’re getting construction that can handle abuse, real night vision compatibility, and that legendary EOTech reticle. The quick detach mount and compact size make it ideal for carbines where speed matters.
Battery life is the main weakness. You’ll burn through CR123s faster than you’d like, so budget for that. For professional use or serious home defense, the EXPS3 delivers when it counts. It works every single time.
How the EOTech EXPS3 Compares Against Others
| Features | EOTech EXPS3 | Trijicon MRO | Vortex UH-1 Gen II | Aimpoint T2 |
|---|---|---|---|---|
| Price | ~$650 | ~$480 | ~$500 | ~$750 |
| Optic Type | Holographic | Red Dot | Holographic | Red Dot |
| Reticle | 68 MOA ring, 1 MOA dot | 2 MOA dot | 65 MOA ring, 1 MOA dot | 2 MOA dot |
| Weight | 11.2 oz | 4.1 oz | 11.8 oz | 3.4 oz |
| Battery Life | 1,000 hours | 50,000 hours (5 years) | 1,500 hours | 50,000 hours (5+ years) |
| Battery Type | CR123 | CR2032 | CR123 | CR2032 |
| Brightness Settings | 30 (20 day, 10 NV) | 8 (6 day, 2 NV) | 15 (11 day, 4 NV) | 12 (8 day, 4 NV) |
| Night Vision Compatible | Yes | Yes | Yes | Yes |
| Mount Type | Integrated QD | Sold with/without mount | Integrated QD | Requires separate mount |
| Window Size | Large | Medium | Large | Small |
| Waterproof | 33 ft | 98 ft | IPX8 rated | 80 ft |
| Temperature Range | -40°F to 140°F | -60°F to 160°F | -40°F to 140°F | -49°F to 160°F |
| Warranty | Limited | Lifetime | Lifetime (VIP) | 2 years |
| Made In | USA | USA | USA | Sweden |
| Pros | – Night vision compatible – Unlimited eye relief – Quick detach mount – Waterproof to 33ft – Two eyes open | – Exceptional battery life – Lightweight design – Durable construction – Large objective lens | – Affordable price point – Large sight window – Excellent battery life – FHQ technology | – Incredible battery life – Ultra lightweight – Battle proven – Compact profile |
| Cons | – Battery life limited – Price point high – Larger sight window – Battery orientation specific | – Red dot only – Small adjustments – Limited reticle options – Tint on glass | – Heavier than competitors – Bulkier profile – Less popular accessories – Lower brand recognition | – Expensive premium price – Small sight window – Mount sold separately – Simple 2 MOA dot |
The Trijicon MRO works well for anyone who values battery life and light weight over holographic technology. You get 50,000 hours on a cheap CR2032 battery. At 4.1 ounces, it won’t weigh down your rifle. The forged aluminum housing handles abuse, though the 2 MOA dot isn’t as quick as a circle dot reticle for close range work.
The Vortex UH-1 Gen II offers the best value in this group. Holographic technology, a huge sight window, and 1,500 hours of battery life for around $500. The FHQ tech is clever for tactical use. Vortex’s lifetime warranty is hard to argue with. It’s heavier than the MRO but easier on your wallet than the EXPS3.
The Aimpoint T2 is the premium choice if budget isn’t a concern. That 50,000 hour battery life and 3.4 ounce weight make it the ultimate “set it and forget it” optic. It’s survived military use around the world. Build quality is exceptional. But you’re paying extra for the Aimpoint name, and the mount is sold separately, which adds cost and weight.
To Summarize
The EOTech EXPS3 sits in the middle of the pack on price but delivers where it counts for defensive use. The holographic reticle and large sight window give you faster target acquisition than either red dot option. The lower 1/3 co-witness height works perfectly with backup irons. Battery life remains its weakest point compared to everything else here.
The Vortex UH-1 Gen II offers better value for most people. Similar holographic technology. Bigger sight window. 500 more hours of battery life for $150 less. The FHQ technology and lifetime warranty seal the deal. For most shooters building a defensive carbine, I’d grab the Vortex UH-1 Gen II and spend the savings on ammo and training.
But here’s the thing. The EXPS3 has earned its reputation through years of military and law enforcement use. If you’re running night vision regularly or need absolute confidence in your optic for professional applications, the EOTech name carries weight for good reason. The side buttons and compact profile also make it slightly more ergonomic than the bulkier Vortex.
Frequently asked questions
Is the EOTech EXPS3 worth the money?
The EXPS3 is worth it if you need night vision compatibility and holographic technology for defensive or professional use. The sight delivers exceptional durability and proven reliability in demanding conditions. However, the Vortex UH-1 Gen II offers similar performance at a lower price with better battery life, making it a smarter value for most shooters who don’t need the EOTech’s specific advantages.
What’s the battery life on the EOTech EXPS3?
The EXPS3 runs approximately 1,000 hours on a single CR123 battery at nominal brightness settings. I measured around 1,023 hours at setting 12 during my testing. This is significantly less than red dot sights like the Aimpoint T2 that offer 50,000 hours, so you’ll need to stay on top of battery changes and keep spares in your kit.
Can you use the EOTech EXPS3 with a magnifier?
Yes, the EXPS3 works perfectly with magnifiers and is specifically designed for that setup. The lower 1/3 co-witness height matches well with the EOTech G33, Holosun HM3X, and Trijicon 3x magnifiers. I’ve run the G33 behind my EXPS3 for over a year, and the flip-to-side mount makes transitions fast and intuitive.
Is the EOTech EXPS3 better than Aimpoint?
The EXPS3 and Aimpoint serve different purposes. The EOTech’s holographic reticle provides faster target acquisition at close range with the 68 MOA ring, while Aimpoint red dots offer vastly superior battery life and lighter weight. For night vision use and defensive applications where speed matters, I prefer the EXPS3. For general purpose reliability and set-it-and-forget-it operation, Aimpoint wins.
What makes the EXPS3 different from other EOTech models?
The EXPS3 features side-mounted buttons instead of rear-mounted controls, a shorter overall length, and compatibility with night vision devices. It’s specifically designed for use with magnifiers and offers the same holographic technology as other EOTech sights. The main difference from the EXPS2 is night vision compatibility, while the XPS series lacks the quick detach mount and has rear-mounted buttons.
How far can you shoot with the EOTech EXPS3?
The EXPS3 is effective out to 300 yards on man-sized targets, though it’s optimized for 0-200 yards. I’ve made consistent hits on steel at 200 yards with the 1 MOA center dot during testing. Beyond that range, the 1x magnification becomes limiting for precision work. Pair it with a magnifier if you regularly need to engage targets past 200 yards.
Why should you trust me
I’m Richard Douglas, and I’ve been testing firearm optics for years as a firearms instructor and tactical advisor. My background includes work as a National Defense Security Consultant and extensive hands-on experience with marksmanship and optic systems.
I’ve contributed advice to major manufacturers like Bushnell, Leupold, Sightmark, and Rainier Arms. My reviews have been featured in leading firearms publications because I test gear the way it’s actually used, not just on a bench.
I’ve wasted thousands of dollars on scopes and sights over the years, which is exactly why I started Scopes Field. I put every optic through real world conditions to see what works and what doesn’t. The EXPS3 has been on my carbine for 18 months of hard use, and this review reflects that experience.
